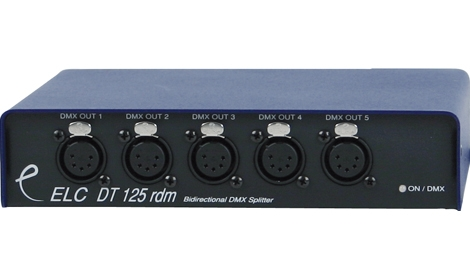

The DT125 is a versatile desktop or truss mounted DMX splitter supporting the bidirectional extension to the DMX protocol to accommodate Remote Device Management (RDM). The DT125 is used in DMX networks where more than a simple daisy-chain connection between DMX devices (to a maximum of 32 devices) is needed. DT125 splitter (or hub) boosts the signal to create a ‘star’ network of 5 additional DMX lines from a single DMX input. DT125 is available with either 3-pin or 5-pin XLR connections and as a fully isolated version. Features: 1 DMX input to 5 DMX output, plus DMX/RDM thru Remote Device Management (RDM) compatible Truss mounted using M10 beneath, or desktop mounted All DMX/RDM outputs are boosted signals (connect up to 32 devices per output) Optocoupler isolation for input, full isolation available as option (FI option) Bi-colour LED confirms valid DMX signal USB connection for firmware updates 19” rack mounting with optional accessory brackets (ELC-RMKIT)
-

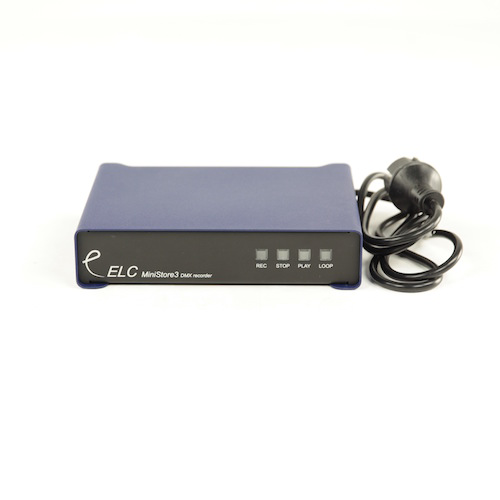

The miniSTORE 3 is a DMX playback recorder that can record and playback DMX streams like a tape recorder. All lighting changes, fades and effects for up to 512 channels on a single DMX line are recorded using 4GB flash memory in real time and can be played back exactly as originally performed. The recording time can vary from hours to days. It is ideal for automating stand-alone shows, such as retail and exhibition displays, including moving light effects, and includes options to start or loop the playback at power-on or with a contact closure. Real-time recording of a DMX-512 data signal to capture and replay an automated show Show recording on a solid-state 4GB SD memory card with a capacity of between 18 hours and several days Provides a stand-alone control system to substitute a regular DMX desk Recording can be disabled to secure the saved show Includes remote activation features for start and loop USB connection for file exchange and backup, compatible with PC and Mac 19″ Rack mounting with optional accessory brackets
-
The showSTORE XLan is an advanced DMX controller that can record and playback DMX data like a tape recorder. All data for lighting changes, fades and effects distributed on up to 4 DMX Universes (2048 channels) may be recorded for a maximum of 24 hours in real time on 4GB flash memory for accurate reproduction. Up to 99 shows of lighting data may be recorded from either the Ethernet lighting network and/or two DMX input ports, and replayed via Ethernet and/or XLR outputs. The showSTORE XLan is fully programmable and is compatible with ELC dmXLAN software. It is ideal for automating larger stand-alone shows, such as retail and exhibition displays, including moving light effects. Features include: Real-time recording of 4 DMX universes to replay up to 99 automated shows on a solid-state 4GB SD memory card with a capacity up to 24 hours Provides a stand-alone control system to replace a regular DMX desk Built-in Ethernet-DMX node Comprehensive external triggering using single or combined elements including contact closures, MIDI, RS232, realtime clock (with 12-month calendar), TCP/Telnet commands, SMPTE timecode, ASCII command set, or DMX-In USB connection for file exchange and backup, compatible with PC and Mac FTP and internal webserver features
-

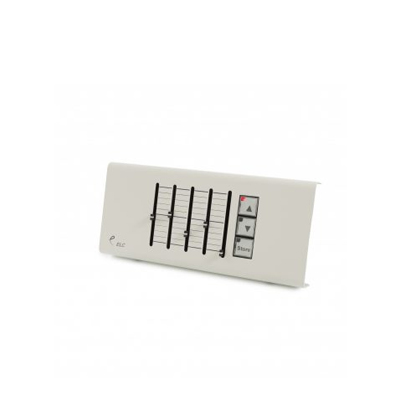

The AC612XUF has 5 faders and 3 buttons with 5 memory slots. The AC612XUFX has the same functionality but is supplied with XLR connections for DMX and a USB connection for firmware upgrades and programming. A universal USB power supply is provided with the XLR version. Captures data from DMX data signal 5 memories of 512 DMX channels, individually recalled by a push button Each memory can be a scene or a chase (total desk capacity is 126 chase steps) Stores chaser step length and times Master up/down fade buttons controls lighting states from 0% to 200% AC612 editor freeware provides programming functions
-
Sharpy is a 189W moving beam light with an unprecedented brightness usually achievable only with far greater wattages. Weighing just 19 kg, Sharpy produces a perfectly parallel, laser-like beam with an incredible output of 59,760 lx at 20m (5,100 foot candles at 65 ft). Sharpy is also groundbreaking for the purity of its beam, which is sharply defined and free of any halo or discolouration around the edges. It offers 14 different colours and 17 gobos, allowing you to change the shape of the beam and create an array of spectacular mid air effects. With its lightweight and modest footprint, Sharpy is small enough to be fitted anywhere – on trusses at live and TV events, on stage, in showrooms or conference rooms. Sharpy is also available in a shiny mirror-finish chrome version, adding glamour to sets while making lights a less invasive presence.
-

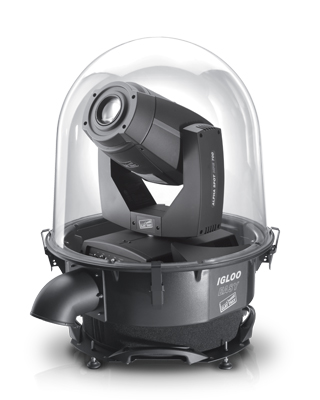

Whenever moving lights are installed outdoors – either permanently for architectural applications or during temporary events and festivals – protecting such sensitive equipment against the elements becomes essential. The Igloo was created by Claypaky for exactly this purpose – a tough, sturdy enclosure that offers complete protection against rain and humidity, and maintains a perfect working temperature (between 0°C and 35°C inside the dome) for fixtures even in hot or sub-zero conditions, with an outdoor working temperature range of -20°C / +40°C (-4°F / 104°F). The Igloo is great for permanent installations and is an indispensable tool for rental companies who want to protect their stock of lighting during outdoor events and festivals. Above all, the Igloo is quick to install, simple to use and competitively priced. The Igloo dome is injection molded from UV-resistant transparent polycarbonate, and is carefully designed to ensure flawless projections without loss of light or image distortion. The Igloo has been designed to accommodate any model of moving light from Claypaky’s own Alpha 700, Alpha 300, Sharpy, Sharpy Wash and A.leda series. For DMX512 fixture control, two options are available: either by using the IGLOO version with onboard wireless receiver (useful for remote locations) or by using the DMX wired version, with IN/OUT cables and waterproof glands, integrated into the base of the dome. Power is supplied via two cables with cable glands: one for the dome internal devices, the other for the luminaire. Outdoor working temperature range of -20°C / +40°C (-4°F / 104°F). The temperature inside the dome is regulated by an automatic cooling and heating system that maintains a constant operational temperature between 0°C and 35°C (32°F / 95°F). The Igloo is equipped with four carrying handles and offers the option of a flight case for safe transport. Installation follows a quick, plug-and-play procedure requiring no tools or special skills. A mechanical multi-positional fixing system allows a variety of compatible luminaires to be fixed. Once sealed, internal electrical connection is done via the supplied Powercon socket, and an integrated XLR socket allows connection to the fixture’s DMX interface. The base is extremely shallow allowing the beam to point in any direction without being blocked or masked – even at maximum downward tilt. The Igloo is entirely weatherproof, with each component offering IP54 protection. The locking system connecting the base to the dome is equipped with a watertight seal and fasteners; power and data cable glands are certified for outdoor use. And, a flexible mounting system allows the Igloo to be oriented in any position without compromising its high IP rating – either placed on the ground, hung upside-down or fixed to upright structures in a horizontal position.
-
Whenever moving lights are installed outdoors – either permanently for architectural applications or during temporary events and festivals – protecting such sensitive equipment against the elements becomes essential. The Igloo was created by Claypaky for exactly this purpose – a tough, sturdy enclosure that offers complete protection against rain and humidity, and maintains a perfect working temperature (between 0°C and 35°C inside the dome) for fixtures even in hot or sub-zero conditions, with an outdoor working temperature range of -20°C / +40°C (-4°F / 104°F). The Igloo is great for permanent installations and is an indispensable tool for rental companies who want to protect their stock of lighting during outdoor events and festivals. Above all, the Igloo is quick to install, simple to use and competitively priced. The Igloo dome is injection molded from UV-resistant transparent polycarbonate, and is carefully designed to ensure flawless projections without loss of light or image distortion. The Igloo has been designed to accommodate any model of moving light from Claypaky’s own Alpha 700, Alpha 300, Sharpy, Sharpy Wash and A.leda series. For DMX512 fixture control, two options are available: either by using the IGLOO version with onboard wireless receiver (useful for remote locations) or by using the DMX wired version, with IN/OUT cables and waterproof glands, integrated into the base of the dome. Power is supplied via two cables with cable glands: one for the dome internal devices, the other for the luminaire. Outdoor working temperature range of -20°C / +40°C (-4°F / 104°F). The temperature inside the dome is regulated by an automatic cooling and heating system that maintains a constant operational temperature between 0°C and 35°C (32°F / 95°F). The Igloo is equipped with four carrying handles and offers the option of a flight case for safe transport. Installation follows a quick, plug-and-play procedure requiring no tools or special skills. A mechanical multi-positional fixing system allows a variety of compatible luminaires to be fixed. Once sealed, internal electrical connection is done via the supplied Powercon socket, and an integrated XLR socket allows connection to the fixture’s DMX interface. The base is extremely shallow allowing the beam to point in any direction without being blocked or masked – even at maximum downward tilt. The Igloo is entirely weatherproof, with each component offering IP54 protection. The locking system connecting the base to the dome is equipped with a watertight seal and fasteners; power and data cable glands are certified for outdoor use. And, a flexible mounting system allows the Igloo to be oriented in any position without compromising its high IP rating – either placed on the ground, hung upside-down or fixed to upright structures in a horizontal position.
