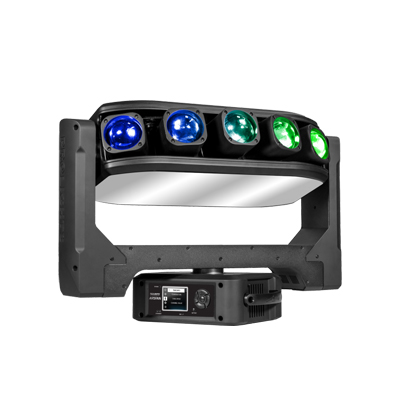

AIR5FAN BATTEN

PROLIGHTS AIR5FAN is a pixel-FX moving head, able to control the spread of its pixels through the motorised lens system, passing from a sharp linear beam effect to a multi-ray effect.

SEND ENQUIRY

Description

Powered by 5x40W RGBW/FC LEDs, with a 2° beam each, delivering stunning brightness for large setups and featuring infinite rotation over pan and tilt. Last but not least, AIR5FAN allows for the mounting of a mirror on its housing allowing for an added effect as moving projecting surface bouncing beams from other light sources.

Features:
-5x40W RGBW Osram LED with 2° beam angle
-Motorised pivot lenses from linear beam to multi-ray effect
-Mountable mirror on the housing featuring as a moving mirror
-Infinite pan and tilt rotation

LIGHT SOURCE

-Source: 5x40W RGBW Osram Ostar LEDs

-Lux: 27211lux @3m

-Source life expectancy: >50.000 h

OPTICS

-Beam angle: 2°

-Lens diameter: 68mm

-Lens type: high-quality glass lens optics

COLOUR SYSTEM

-Colour mixing: RGBW/FC

-CTC: CTC control through independent DMX channel

-White presets: 2700-10000K

-Colour wheel: virtual colour wheel with presets

DYNAMIC EFFECTS

-Pixel patterns: pre-programmed dynamic and static patterns

-FX generator: adjustable foreground/background colour, index, speed, direction

-Special features: Head pivot control, mirror reflecting beams

BODY

-Hardware on-board: Mountable mirror through quick-lock screws

-Pan angle: 540/630° with 360° continuous rotation

-Tilt angle: 360° with 360° continuous rotation

-Pan/Tilt resolution: 16bit

-Feedback: automatic repositioning after accidental movement

-Body: aluminium structure with hi-resistance polycarbonate cover

-Body colour: black

-Other: Pivot angle: 0-28°

CONTROL

-Protocols: DMX512, RDM, Art-Net

-DMX channels: 17 / 27 / 43channel

-Pixel control: pixel2pixel control

-W-DMX: optional, wireless solution receiver

-RDM: RDM ready for fixture remote monitor and settings

-Display: LCD high resolution colour display with autoflip

-Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included

-Hibernation: power safe mode when lost DMX

-Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

-Dimmer: linear 0~100% electronic dimmer

-Strobe / shutter: 1-30 Hz, electronic

-Battery backup: battery backup for user operation without connecting to the main power

-Operating temperature: -10° ~ +45°

-Flicker: flicker free operation

ELECTRICAL

-Power supply: 100-240V – 50/60Hz

-Power consumption (at 230V): 208W

-Power consumption (at 120V): 218W

PHYSICAL

-Cooling: Aluminium heat sink cooling system and low noise fan

-Suspension and fixing: any position with quick-lock omega brackets

-Pan / tilt lock: Pivot lock for trasportation and maintenance

-Signal connection: Amphenol XLR 5p IN/OUT connectors

-Data connection: Art-Net RJ45 IN/OUT

-Power connection: Neutrik powerCON TRUE1 IN connector

-IP rating: 20

-Dimensions (WxHxD): 558x474x242mm

-Weight: 16kg
