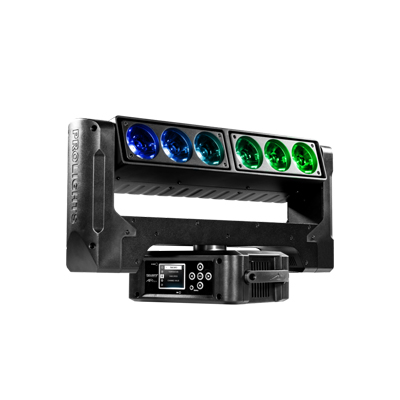

AIR6PIX BATTEN

PROLIGHTS  AIR6PIX is a moving batten designed to deliver a powerful blade of beams. Each of the 4.5° RGBW LED pixels are individually controllable and both sides pivot to create classic ACL ‘fan’ and ‘knot’ looks.



Description

With infinite rotation of both pan and tilt, the only limit is the designer’s imagination…

Features:
-6x40W RGBW LED with 67mm lenses each deliver a bright, consistent 4.5° beam
-Infinite pan and tilt rotation plus beam pivot provides movement on 3 axis
-Individual pixel control with an on-board generator for precise and fast to create effects

LIGHT SOURCE

-Source: 6x40W RGBW LEDs

-Lux: 85611lux @3m full

-Source life expectancy: >50.000 h

OPTICS

-Beam angle: 4,5°

-Lens diameter: 67mm

COLOUR SYSTEM

-Colour mixing: RGBW/FC

-CTC: CTC control through independent DMX channel

-White presets: 2800~9000K

-Colour wheel: virtual colour wheel with presets

-Macros: several pre-build pixel macros with adjustable speed

DYNAMIC EFFECTS

-Pixel patterns: pre-programmed dynamic and static patterns

-FX generator: adjustable foreground/background colour, index, speed, direction

Special features: Pivot angle: -5° to +15°

BODY

-Pan angle: 630° with 360° continuous rotation

-Tilt angle: 265° with 360° continuous rotation

-Pan/Tilt resolution: bit 8/16 bit

-Feedback: automatic repositioning after accidental movement

-Body: aluminium structure with hi-resistance polycarbonate cover

-Body colour: black

CONTROL

-Protocols: DMX512, RDM, Art-Net

-DMX channels: 23 / 25 / 49channel

-Pixel control: pixel2pixel control

-W-DMX: optional, wireless solution receiver

-RDM: RDM ready for fixture remote monitor and settings

-Display: LCD high resolution colour display

-Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included

-Hibernation: power safe mode when lost DMX

-Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

-Dimmer: linear 0~100% electronic dimmer

-Dimmer curves: different dimming curves available

-Strobe / shutter: 1-25 Hz, electronic

-Battery backup: battery backup for user operation without connecting to the main power

-Operating temperature: -10° ~ +45°

-Flicker: flicker free operation

ELECTRICAL

-Power supply: 100-240V – 50/60Hz

-Power consumption (at 230V): 216W

-Power consumption (at 120V): 216W

PHYSICAL

-Cooling: forced air with low noise fan

Suspension and fixing: any position with quick-lock omega brackets

-Signal connection: Amphenol XLR 5p IN/OUT connectors

-Data connection: Art-Net RJ45 IN/OUT

-Power connection: Neutrik powerCON TRUE1 IN connector

-IP rating: 20

Dimensions (WxHxD): 550x320x200mm

Weight: 12kg
