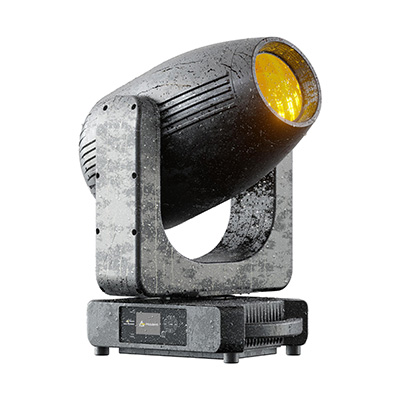

Astra Profile600IP

Categories: , , , , , , SKU: MUSMOV610

The Astra Profile600IP is a bright, waterproofed (IP65) LED profile moving light, designed for any large-scale touring applications and exterior installations.

Enquiry about Astra Profile600IP

Enter the security code shown above

Description

Despite its waterproofed exterior, this unit is tremendous brightness and offers a superior evenness when comparing with other fixtures in the same class. Its light source delivers a pure white light emission at 6,500K, reaching 21,200 lumens whilst achieving a flat field beam projection. The Astra Profile600IP’s optical system moves linearly from 7° to 62°, and it’s equipped with a brand-new 600W LED source. The extensive feature set of the Astra Profile600IP includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filter, prism, and an iris.

Features:

  • IP65 LED Moving Profile equipped with a 600W long life LED source (6,500K)
  • 7° to 62° linear zoom
  • 4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, one frost filter, prism and iris

LIGHT SOURCE

  • Source: 600W White LED
  • CCT: 6.500K
  • Luminous flux: (7°) 14’877 lm – (62°) 21’200lm
  • Lux: (7°) 57’569 lx – (62°) 1’144lx @5 m
  • CRI: > 70 (CCT 5.600K and CRI > 90 with high CRI filter on color wheel)
  • Source life expectancy: > 30.000 h

OPTICS

  • Zoom: 7° – 62° motorised linear zoom
  • Lens diameter: 150mm
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised

COLOUR SYSTEM

  • Colour mixing: linear CMY
  • CCT: linear CTO correction 2.700 K ~ 6.500 K
  • Colour wheel: open + 5,600K high CRI filter + 6 colour filters



DYNAMIC EFFECTS

  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 29,9 mm – image: 22 mm – thickness: up to 3 mm
  • Circular prism: 4f with bi-directional rotation, indexing
  • Frost: linear 0 – 100% frost filter
  • Iris: 5 – 100% motorised iris

BODY

  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: weatherproof IP65 construction
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM, ArtNet, sACN, W-DMX + CRMX
  • DMX channels: 29 / 39 / 54channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included
  • Other: 16bit control of dimmer and colour

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 750W
  • Power factor: >0,97
  • Inrush current: 240VAC/34.7A, 115VAC/18.4A

PHYSICAL

  • IP rating: 65 for temporary outdoor use (*)
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: IP65 Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Dimensions (WxHxD): 454x730x334mm
  • Weight: 45,6kg


MUSMOV610 Astraprofile600IP65 datasheet.pdf    624.12 KB
