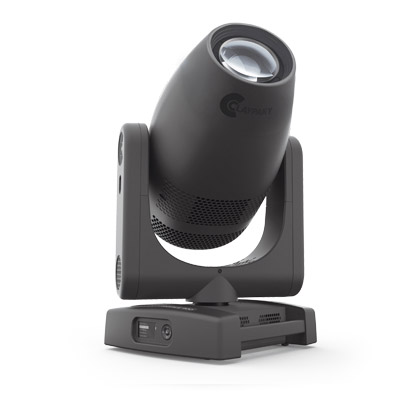

Axcor Profile 600

In the crowded world of medium-high power lights, the AXCOR PROFILE 600 stands out for its excellent combination of high performance, exceptional light quality, and versatility of use.

The luminous efficiency is among the highest in this power category, and – if necessary – it can be further increased by about 25% thanks to “boost mode” (available on the standard version and on the HC version), making AXCOR PROFILE 600 a perfect tool for tours and large events.

The Axcor Profile 600 comes in two versions:

Axcor Profile 600 (CLPLED600): 6500 K, CRI=70

Axcor Profile 600 HC (CLPLED601): 5600 K, CRI=90

Description

The Axcor 600 fits a 500 W white LED engine, available in two versions: with high output 6500K colour temperature, or – alternatively – with 5600K colour temperature and a CRI of around 90.

A wide zoom range from 5.3° to 47.2° (1:9 ratio) means the light can be used in a variety of situations, including those for which a narrow-angle is best.
The completeness of its colour section, its great wealth of visual effects, its framing system implemented with technological devices that enhance its precision and versatility, the possibility of using it as a wash light, make the Axcor Profile 600 an essential benchmark for all modern entertainment uses.

  • Source: 500W White LED Engine
  • Versions available:
    – CRI: at least 70, CT 6500K (Axcor Profile 600 and ST)
    – CRI: at least 90, CT 5600K (Axcor Profile 600 HC and HC-ST)
  • Ø 132mm front lens
  • 5.3°- 47.2° linear Zoom
  • CMY + Linear CTO
  • One Colour Wheel with 5 Colours
  • One Rotating Gobo Wheel with 7 Gobos
  • Rotating 4-facet prism
  • Animation wheel (interchangeable with fixed gobo wheel)
  • Motorized framing system with 4 focal planes
  • Framing system indexable over 90 degrees
  • Variable Frost filters with multiple macros (
  • random, pulsing…)
  • Electronic linear dimmer, 16 bit and 4 curves
  • Electronic strobe @25 f/sec.
  • Weight: 33 Kg (72.7 lbs)

POWER SUPPLIES
AC power input Neutrik PowerCON True
100-240V, 50/60 Hz

INPUT POWER

800 VA @230Vac – 50Hz

LIGHT SOURCE

Source: 500W White LED Engine
Versions available:
– CRI: at least 70, CT 6500K (Axcor Profile 600 and ST)
– CRI: at least 90, CT 5600K (Axcor Profile 600 HC and HC-ST)

OPTICS

Ø 132mm front lens
5.3°- 47.2° linear Zoom

COLOUR SYSTEM
CMY + Linear CTO
One Color Wheel with 5 Colors

FRAMING SYSTEM

Motorized framing system with 4 focal planes
4 Blades that move separately
Smooth, flexible blade movements at variable speed
Faming system indexable over 90 degrees

EFFECTS SECTION

One Rotating Gobo Wheel with 7 Gobos
Rotating 4-facet prism
Animation wheel (interchangeable with fixed gobo wheel)
Variable Frost 0-100% linear
Iris with multiple macros (random, pulsing…)
Electronic linear dimmer, 16 bit and 4 curves
Electronic strobe @25 f/sec.

CONTROL AND PROGRAMMING
40/44 control channels
inputs: DMX 512 – Art-Net
Control signal USITT DMX 512
Protocols RDM, WebServer and Art-Net
Display Graphic LCD backlit b/w Display
Display battery Long life self-charging buffer battery
Pan/Tilt Resolution 16 bit
Focus Resolution 16 bit
Gobo Resolution 16 bit
Dimmer Resolution 16 bit
Movement control vectorial
DMX signal connection 3 or 5 pole XLR input and output
Ethernet Input
Firmware update Software upload through DMX/Ethernet input

BODY
Aluminum and steel structure with plastic covers.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.

MOVING BODY
PAN range 540°
TILT range 268°

ELECTRONICS
Long life self-charging buffer battery.
Function reset from the lighting desk.
“AUTOTEST” function from menu ARTNET.
Electronic monitoring with status error.
Cooling system monitoring.
DMX level monitoring on all channels.
Internal data transmission diagnostics.
Firmware Upgrade with no power.
Firmware upload from another fixture.

SAFETY DEVICES
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating.
Forced ventilation with axial fans.
Minimum distance of illuminated objects: 3 meters (9’ 10”).
Minimum distance from flammable materials: 0.2 meters (8”).
Max ambient temperature: 40°C (104°F).
Max temperature of the external surface: 90°C (194°F).

WORKING POSITION
Working position: Any.
Hanging system 2x fast-lock omega clamps (1/4 turn) on the
base.
Optional: 48-51mm, max300Kg clamps; Ø 4mm, lenght
680mm safety cable

CE MARKING
In conformity with the European Directives:
• 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU – Electromagnetic Compatibility (EMC)
• 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS) • 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)

WEIGHT
33 Kg (72.7 lbs)
