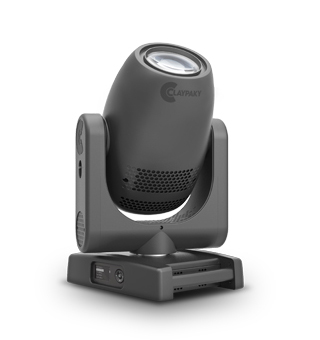

Axcor Wash 300

The new Axcor 300 family of moving LED fixtures brings Claypaky’s no-compromise quality and performance to the broad mid-market. The quality of their effects, their construction, and their high light output derive from the high-end products Claypaky specializes in.



Description

The AXCOR WASH 300 has a 140mm front  PC  lens  and  linear  5.5°-42° zoom. Producing colours is its speciality: it is fitted with all the components you need to produce any shade of colour you desire, with a light diffusion uniformity comparable to higher-end models.
It boasts cutting-edge electronic and software technology, with all the features that enable optimal fixture management and maintenance over time.With a price-point, physical size and power consumption that disguise its strength and creative potential, the Axcor Wash 300 enables a new world of expression in touring, events, TV, theatre and installed lighting markets.

  • Source: 180W White LED engine (7000 K)
  • Ø 140mm PC front lens
  • 5.5°-42° Linear Zoom
  • CMY system on wheels
  • One colour wheel with 9 colours (including 1 CTO filter)
  • Rotating Ovaliser beam
  • 16-bit Electronic Dimmer with 4 curves
  • Electronic strobe@24 f/sec
  • Extremely compact and lightweight



POWER SUPPLIES
AC power input Neutrik PowerCON
100-240V, 50/60 Hz

INPUT POWER
290 VA @230Vac – 50Hz

LIGHT SOURCE
180W White LED engine (7000 K)

OPTICS
Ø 140mm PC front lens
5.5°-42° Linear Zoom

COLOUR SYSTEM
CMY system on wheels
One colour wheel with 9 colours (including 1 CTO filter)

EFFECTS SECTION
Rotating Beam shaper
Strobe 24 flash/sec, electronic, instant open and blackout
Dimmer 16 bit electronic and linear; 4 dimmer curves
Electronic Zoom

CONTROL AND PROGRAMMING
16 DMX 512 control channels
DMX 512 – Art-Net
Control signal USITT DMX 512
Protocols RDM, WebServer
Display Graphic LCD backlit b/w Display
Display battery Long life self-charging buffer battery
Pan/Tilt Resolution 16 bit
Dimmer Resolution 16 bit
DMX signal connection 5 pole XLR input and output
Ethernet input

BODY
Aluminum and steel structure with plastic covers
Two side handles for transportation
Device locking PAN and TILT mechanisms for transportation and maintenance

MOVING BODY
PAN range 540°
TILT range 270°

ELECTRONICS
Long life self-charging buffer battery
Function reset from the lighting desk
“AUTOTEST” function from menu
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware Upgrade via Web Server
Firmware upload from another fixture
Protocols/Functions: RDM, Web Server

SAFETY DEVICES
Minimum distance of illuminated objects 3 meters (9’ 10”)
Minimum distance from flammable materials 0.2 meters (8”)
Max ambient temperature 40°C (104°F)
Max temperature of the external surface 90°C (194°F)
T5A fuse
Automatic break in power supply in case of overheating
Forced ventilation with axial fans

WORKING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING
In conformity with the European Directives:
• 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU – Electromagnetic Compatibility (EMC)
• 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)

WEIGHT
19.9 Kg (43.87 lbs)
dimensions: (LxWxH) 350 x 276 x 639 mm
13.78″ x 10.86″ x 25.16″
