C72TV

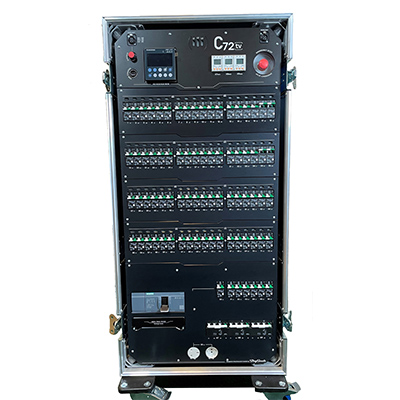

The C72tv is a 400A large-scale power distribution unit designed to meet all the requirements of delivering safe and reliable power to the modern-day entertainment industry.

Description

Seventy-two channels equipped with industrial-grade hydraulic-magnetic breakers and very precise individual residual current detection on each output. Thermal stability, better tolerance against earth-leakage and better handling of intermittent peak currents will enable you to connect even more complex loads on each channel.

The C72tv enables you to adapt your outputs to any situation with its quick-change modular output boxes. Change between different connector options in minutes depending on what’s needed for the client or fix a broken connector instantly during a show.

Extending the units usability even more are the seven auxiliary 1-phase outputs and up to three 3-phase outputs that can be customized to your needs. Same high-grade breakers as in the rest of the unit but with separate adjustable residual current devices for the 3-phase outputs.

Comprehensive input analysis of all voltages and currents feeding the unit and our proprietary load sensors on each channel gives you all the relevant data on what’s going on in your system. Indication on the front panel of overloads, lost loads or normal operation for each individual channel are easily viewed even from a distance together with the indicators for overall system status.

The C72tv gives you full remote access to all monitored data in real time over any standard network and on any device running a web browser, no special software or network needed. The internal web server gives you the ability to name each unit, color-code and name all channels, set up extended supervision on critical channels and monitor the total current for each connected multicore-cable. The status for the main-breaker, the E-stop, neutral protection and the unit’s internal temperature can also be monitored in the online interface. All settings are automatically stored internally and travels with the unit, data can be imported and exported in standard excel-format. The onboard CPUs battery back-up ensures that the C72tv will give you relevant information about what’s going on even during a total power failure to help you find and correct any problem rapidly.

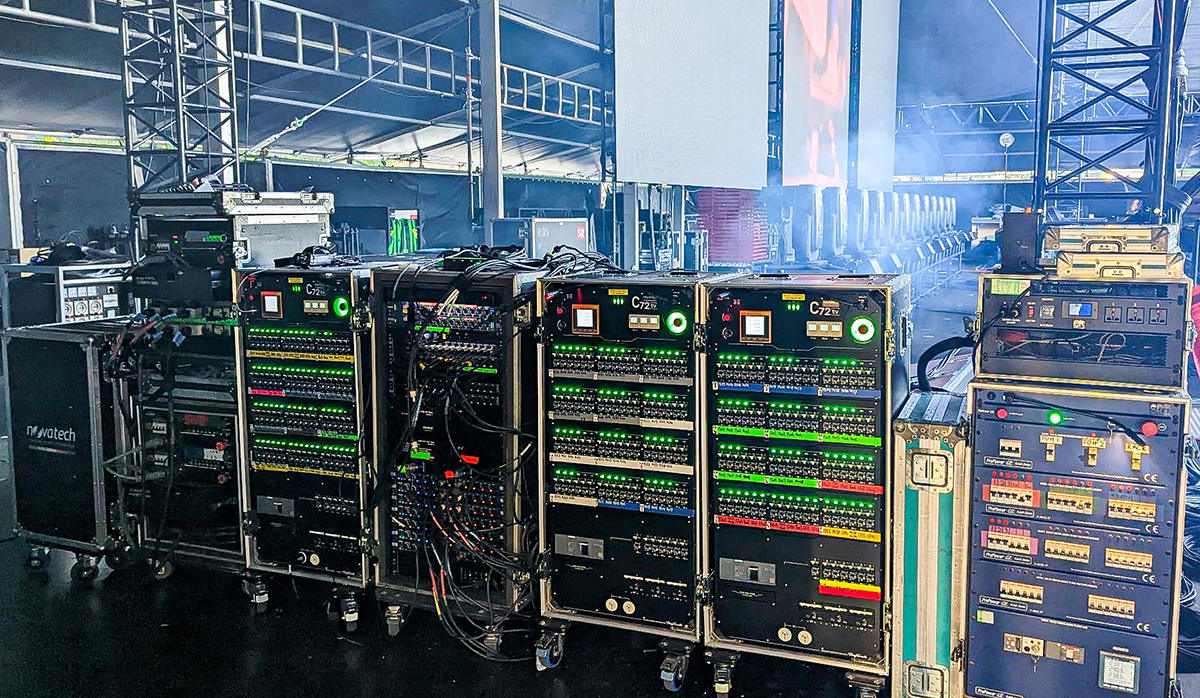

The whole unit is protected in its custom flight case and floats freely in an integrated shock proof suspension system.









Power input Powerlock 400A

5-wire (TN-S) 230/400V

Main breaker MCCB, electronic protection, 4-pole 400A
Over-voltage protection Immediate disconnection in case of lost neutral connection
Main input metering All incoming voltages, all currents (including neutral current), power factor, frequency
Main status indicators Multicolored status indicator
Channel load monitoring Individual status indicating multicolor LED
No of main channels 72
Channel capacity and protection 16A / channel, RCBO A-type, 30mA
Auxiliary channel X0 2 parallel sockets (user seletable)
Auxiliary capacity and protection 16A / channel, RCBO A-type, 30mA
Auxiliary channels X1-X6 16A, 3-pin CEE (customisable connectors)
Auxiliary capacity and protection 16A / channel, RCBO A-type, 30mA
Auxiliary channels X7-X9 16A-63A, 5-pin CEE
Auxiliary capacity and protection 16A-63A, 4-pole breaker, adjustable and switchable RCD (30mA-5A) (20ms-5s)
Main output connections Modular
Worklights 4 x 3-pole XLR, 12VDC, 15W, PWM dimmer
USB-charger 5VDC, 2.1A
Dimensions & weight 1342 x 600 x 723mm, 150kg
Certifications, standards EN 61439-1, EN 62368-1:2014, EN 61000-6-1:2007,EN 55015:2006+A2:2009, BS7671, BS7909
