Cobra 3.1

SKU: LOKFOG150

Category: Atmospheric, Entertainment, Fog, Look Solutions, Production, Venues

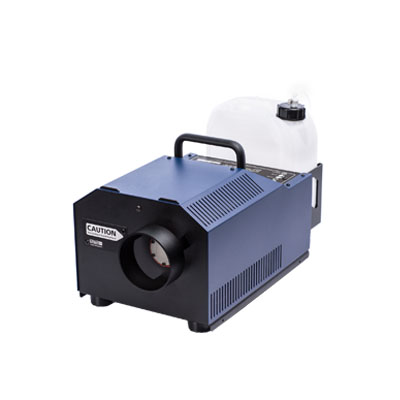

The Cobra 3.1 is a powerful fog generator, that sets new Standards concerning noise and handling.
The new Touchscreen makes the handling of the Cobra 3.1 easy and intuitive. Operation via Ethernet and RDM-features allow most exible use. The machine is supplied with a duct adaptor that also functions as a protection against contact.

Features
•230V only

• New, extremely silent nozzle
with its newly developed nozzle the machine works very silently. The noise level at full output is 82.5 dBA (in comparison: the Viper 2.6 with 2600 Watt generates at full output 100.5 dBA). The nozzle can be unscrewed and cleaned as needed.
• Two pumps for constant output
The use of two pumps ensures a very constant fog output at any pump level.
Therefore the continuous output up to 30% pump level is regulated from one pump, levels from 31% to 100% are regulated by a second, more powerful pump.
• New Touchscreen
All adjustments can be made easily and intuitive via the big Touchscreen with simple menu navigation.
• New controls
Besides the stand-alone, analogue and DMX 512 control, the machine can also be operated via Ethernet (Artnet and sACN).
• RDM-capable
The Cobra 3.1 is equipped with the following RDM-features: — Status: Ready, Re-heating, Error messages (E-1, E-2 etc) — DMX-Patch
— Temperature: Heating element, PCB
— Adjusting the Personality
— General Informations about the machine
Newly developed, extremely silent nozzle
constant, steady Output
DMX, Ethernet, RDM
Made in Germany
• Finest adjustments of the output
Digital technology enables fine adjustments of the pump. In steps of 1% the output can be adjusted from 0 – 100%. Thus, any desired effect – from a tiny fog cloud to the thickest continuous fog – can be produced. This allows an individual adaptation to the dimensions of the room.
• Adjustable Pump characteristic
Depending on the use of the Cobra 3.1 and the desired effect, the user can choose between four different pump characteristics: Impulse, Extended, Flood and Continuous.
The output and fogging time varies depending on the choo- sen pump characteristic.
• Adjustable Performance curve
For nest adjustments of the pump from 0% – 30%. In these- pump levels, the performance curve can be regulated 5% up or down, if the same output is needed at several machines or the aging process influences the output. Thus, different fog amounts can be balanced.
• Internal Timer
With the internal timer, the fogging time can be adjusted in seconds, the wait time in minutes and the output in %. Once the timer is activated, the adjusted program will run until the timer is deactivated.
•Working hours counter
The Cobra 3.1 is equipped with a working hours counter, that saves heating and fogging durations.
Liquid
The following Look fog liquids are available for the Cobra 3.1:
Quick-Fog (thick, quick disappearing fog liquid) Regular-Fog (thick, long-lasting fog liquid) Slow-Fog (thick, extremely long lasting fog liquid)
