CRYO Fog

Categories: , , , , SKU: LOKFOG140 Tag:

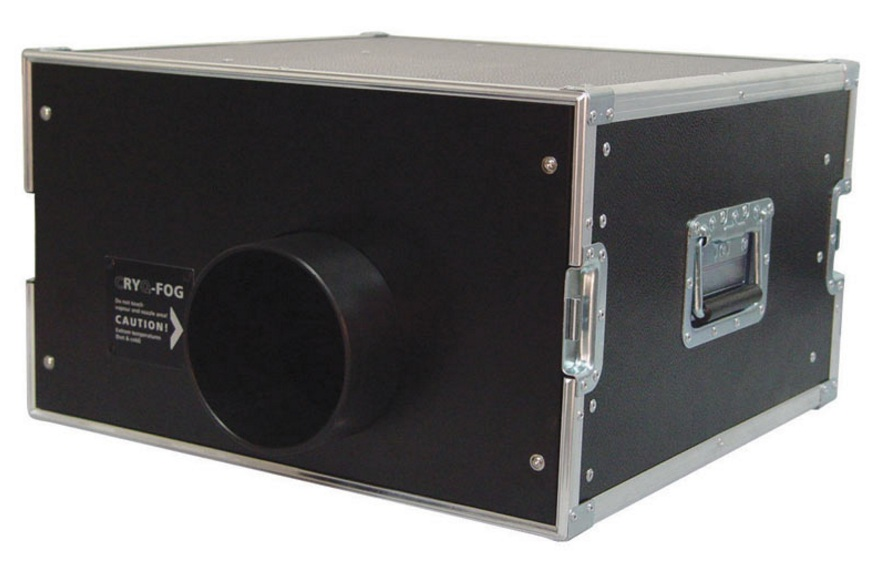

The CRYO-FOG is a powerful low fog machine. A fog generator, a fan and a cooling chamber build into a compact flightcase (67 x 51 x 30 cm) with space next to the fog generator to held a 5ltr can of fluid.

Description

Liquid CO 2 is used to cool down the fog of the inbuilt low temperature fog generator. Therefore the machine produce thick low fog which distributes evenly.

The machine is powerful enough to fill even big stages with low fog within a short time. The liquid CO 2 is delivered from a low pressure tank (20 – 24 Bar), which is connected to the machine via a hose. For more information about our low for generator that can be used with high pressure bottles, see CRYO-FOG High Pressure.

The intelligent technology ensures that the fogging process will not start before the cooling chamber has reached the right temperature. As a result, no “warm” fog – which will go upwards – can escape from the machine.

The CRYO-FOG benefits from its compact size, the low weight, the powerful output, the low noise and the easy operation.

  • Fog generator, fan and cooling system in a compact case
  • DMX as standard, analogue (0 – 10V) and stand-alone-Mode
  • In the DMX-Mode the pump, the fan and the CO 2-valve can be adjusted separately
  • Can be used as a “normal” fog generator in DMX-Mode
  • Low fogging process starts automatically only if the cooling chamber has reached the right temperature
  • Easy handling
  • Powerful output
  • Fogging output adjustable in steps of 1% from 0 – 99%
  • Continuous output
  • Easy bottle changing with quick-out connectors
  • Made in Germany

Technical data

Procedure

vaporizing fog machine
with cooling chamber

Total requirement
Power requirement

2300 Watt / 1700 Watt (120 V)
2000 Watt / 1400 Watt (120 V)

Voltage

230 V / 50 Hz
120 V / 60 Hz

Warm up time

approx. 7 min.

Fluid consumption
at 100% output
at . 50% output

100 ml/min.
. 40 ml/min.

Liquid CO 2 consumption
at max. output

2 kg/min.

Fluid tank capacity

5 l

Fog output

adjustable in 99 steps
Fogging time

continous output

Control

DMX 512
0 – 10 V analog
Stand-alone-Mode

Temperature control Microprocessor
Overheating protection

Heater block/thermostat
Pump/Thermal switch

Dimensions (L x W x H)

67 x 51 x 30 mm

Weight

approx. 28 kg
