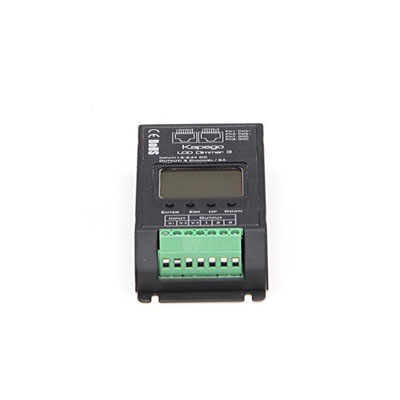

DMX PWM Dimmer DC 12-24v CV03 HC

Categories: , , SKU: LEDCON365

The dimmer can be used as a 1-channel dimmer (all 3 outputs are controlled via a DMX address) or as a 3-channel dimmer.

Description

A manual mode allows to dimming the 3 channels on the device individually (colour adjustment) and additionally there is a master dimmer. There are already 27 colour change programs and a master / slave function integrated. All settings can be accessed via a simple menu via the LCD display. Incl. 2m CAT5 cable.

Product Features:

  • OLED display, more convenient operation
  • 27 scene modules built-in with speed and brightness adjust function
  • 3 output channels max 6A output per channel
  • easy to set the DMX address by buttons
  • Adopting the logarithm dimming curve with a smooth dimming effect
  • convenient dimming and colour fading by using OLED display and push buttons





LEDCON365 Datasheet.pdf    870.86 KB
LEDCON365 DMX PWM Dimmer DC CV03HC Manual.pdf    1.3 MB
LEDCON365 Manual.pdf    426.3 KB
