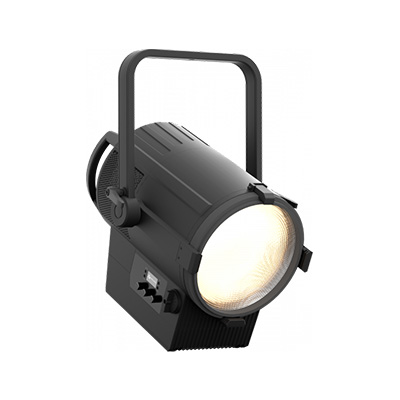

EclFresnel 2KVW

Categories: , , , , , , SKU: MUSFRE118

The EclFresnel 2KVW is a powerful LED Fresnel lamp, designed as a replacement for a 2,000W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 500W LED source.

Enquiry about EclFresnel 2KVW

Enter the security code shown above

Description

This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.
The EclFresnel 2KVW has a manual zoom range from 15° to 79,5°, with precise focusing, and an 8-leaf barndoor (included).
This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.

Features:

  • Linear white CCT, from 2,700K to 5,600K
  • 500W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
  • Barndoor, 28 mm spigot and filter frame included
https://youtu.be/f1FpItvxhR8
LIGHT SOURCE

  • Source: 500W Variable White LED
  • CCT: 2.700 K – 5.600
  • Luminous flux: (15°) 12’196 lm – (79,5°) 19’711lm @full
  • Lux: (15°) 6’782 lx – (79,5°) 1’118lx @5 m full
  • CRI: 94 @WW; 96 @CW; 92 @full
  • R9: 90 @WW; 88 @CW; 73 @full
  • TLCI: 97 @WW; 99 @CW; 98 @full
  • TM30 Rf: >94 @WW; >94 @CW; >93 @full
  • TM30 Rg: <103 @WW; <103 @CW; <104 @full
  • Source life expectancy: > 50.000 h
OPTICS

  • Zoom: 15° – 79,5° manual
  • Lens diameter: 9.84″ – 250mm / 0.39”
  • Lens type: fresnel zoom lens
COLOUR SYSTEM

  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K – 5.600K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of intensity and CT from knob
  • Auto mode: built-in programs with execution speed adjustment
BODY

  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Pan angle: (for pole operated version) 360° with manual regulation
  • Tilt angle: (for pole operated version) 180° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9003
CONTROL

  • Protocols: DMX512, RDM
  • Stand Alone: 3 rotatory knobs
  • DMX channels: 1 / 2 / 4 / 5 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 450W
  • Output (at 230V): 5 units on a single power line
  • Power factor: > 0,95
  • Inrush current: 230VAC/20A, 110VAC/21.5A
PHYSICAL

  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 421x537x456mm / 16.57”x21.14”x17.95”
  • Dimensions with PO system (WxHxD): 401x576x456mm / 15.79”x22.68”x17.95”
  • Weight: 17,2kg / 37.92lbs
  • Weight with PO system: 18kg / 39.68lbs
There are no downloads available for this product!

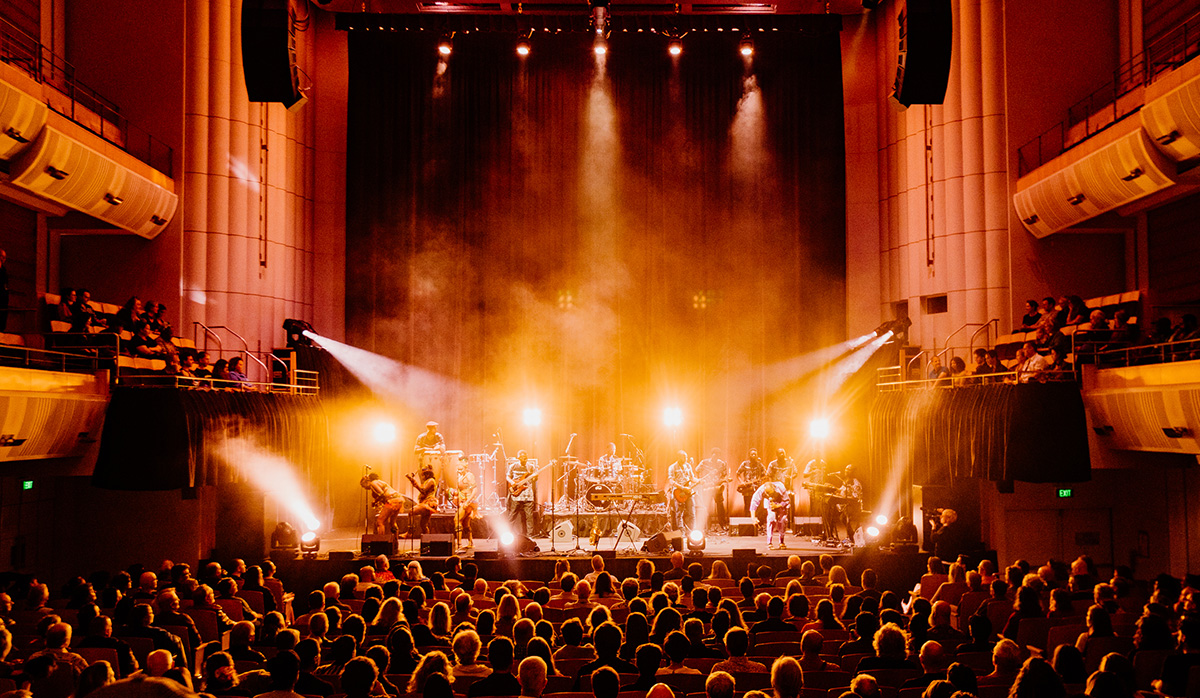

The City Recital Hall Receives Major Lighting Upgrade
