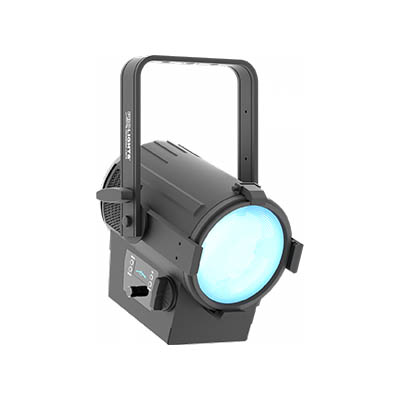

EclFresnel Jr DY

LIGHT SOURCE

• Source: (DY) 74W high-power white LED
• CCT:(DY) 5.600K
• CRI:  (DY) up to 91 Ra
• R9: (DY) up to 54
• Luminous flux: (DY) (15°) 3’656 lm (51°) 5’911lm
• Lux:DY (15°) 4’512 lx – (51°) 707lx @3 m
• Lux:DY (15°) 1’624 lx – (51°) 254lx @5 m full
• Source life expectancy: > 50.000 h

OPTICS

• Zoom: 15 ° – 51° manual
• Field angle: 26,7 ° – 75,6°
• Lens diameter: 6” – 150mm / 0.24”
• Lens type: fresnel zoom lens

DYNAMIC EFFECTS

• Static colour mode: selection of static colour
• Manual colour mode: manual adjust of dimmer throughout menu and knob
• Auto mode: built-in programs with execution speed adjustment

BODY

• Hardware on-board: included filter frame, 8 doors barndoor, omega bracket spigot
• Pan angle: (for pole operated version) 360° with manual regulation
• Tilt angle: (for pole operated version) 340° with manual regulation
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black

CONTROL

• Protocols: DMX512, RDM, local knob
• DMX channels: 1 / 2 – 1 / 2 – 2 / 3 / 5channel
• RDM: RDM ready for fixture remote monitor and settings
• Display: black OLED high resolution display
• Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
• Other: 16bit control of dimmer and colour

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 0 ~ 30 Hz, electronic
• Operating temperature: -10° ~ +45°
• Flicker: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Power supply: 100-240 V – 50/60 Hz
  Power consumption (at 230 V): 82,7W
  Power consumption (at 120 V): 83,3W
  Output (at 230 V): 30 units on a single power line
  Output (at 120 V): 16 units on a single power line

PHYSICAL

• Cooling: forced air with low noise fan
• Suspension and fixing: hanging bracket suitable for safe hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 235x360x260mm / 9.25”x14.17”x10.24”
• Weight: 6kg / 13.23lbs
