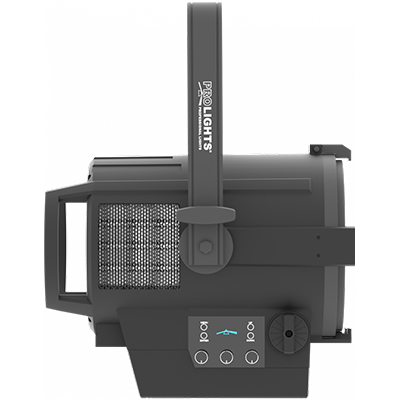

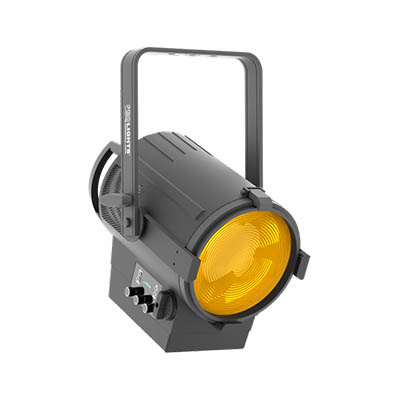

EclFresnel TW

Description

The optical system harnesses the power of a 260W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with the option to apply +/- green and magenta correction to match other sources of light. Featuring HD dimming and tuning from 2800K to 10000K version, the EclipseFresnel TW delivers the performance and quality of output demanded from this level of a luminaire.

Features:

Tunable White 2800K – 10000K with high CRI and extensive colour mixing
+/- green and magenta white tuning
Silent operation for studio and stage use

LIGHT SOURCE

Source: 260W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
CCT: 2.800 K ~ 10.000K
CRI: up to 91 Ra
R9: up to 90
Luminous flux: (15°) 4’653 lm – (45°) 7’896lm
Lux: (15°) 4’662 lx – (45°) 955lx @3 m full
Lux: (15°) 1’678 lx – (45°) 344lx @5 m full
Source life expectancy: > 50.000 h

OPTICS

Zoom: 15° – 45° manual
Field angle: 31° – 92°
Lens diameter: 8” – 200mm / 0.31”
Lens type: Fresnel zoom lens
Focus: manual

COLOUR SYSTEM

Colour mixing: tunable white + colour
CTC: CTC control through independent DMX channel, + / – green and magenta correction and amber shift activation by DMX
White presets: 2.800 K -10.000K
Colour wheel: a virtual colour wheel with presets
Macros: several pre-build macros with adjustable speed

DYNAMIC EFFECTS

Static colour mode: a selection of static colour
Manual colour mode: manual adjustment of intensity, CT, colour correction from knob
Auto mode: built-in programs with execution speed adjustment
Special features: linear crossfade from a white to any colour and CTO applied on colours

BODY

Hardware on-board: included filter frame, 8 doors barndoor, omega bracket spigot
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black

CONTROL

Protocols: DMX512, RDM, local knob
DMX channels: 1 / 2 / 5 – 1 / 5 – 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
RDM: RDM ready for fixture remote monitor and settings
Display: black OLED high-resolution display
Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
Other: 16bit control of dimmer and colour

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 – 30 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 260W
Power consumption (at 120 V): 260W
Output (at 230 V): 11 units on a single power line
Output (at 120 V): 6 units on a single power line
Power factor: pF 0,99 @120 V – pF 0,93 @230 V

PHYSICAL

Cooling: a combination of heat pipe cooling system and low noise fan
Suspension and fixing: hanging bracket suitable for safe hanging and positioning

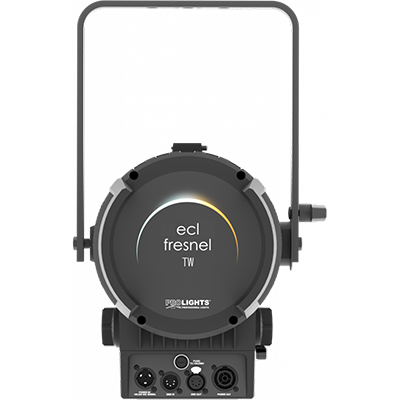

Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 283x440x343mm / 11.14”x17.32”x13.5”
Weight: 7,5kg / 16.53lbs
