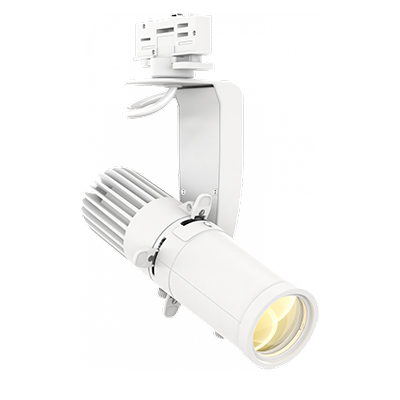

Eclipse Mini Profile TR White

Categories: , , , , , SKU: MUSGAL220 Tag:

Mini Profile TR is a 28W CREE LED new concept of mini LED ellipsoidal. Demonstrating a stylish design, ease of use, due to the manual knob, has precise optics, sharp image projection and bright even projection – all in a compact housing that is just a quarter of the size of the traditional ellipsoidal fixtures.

Enquiry about Eclipse Mini Profile TR White

Enter the security code shown above

Description

Mini Profile TR is designed for applications in commercial spaces, museums, restaurants, churches, educational theatres and any other installation where size is an important factor. Available in tungsten and daylight versions, Mini Profile TR performs even field projection with high CRI at any level of brightness and linear dimmer over the entire curve.



Features include:

  • 28W White LED source available in Tungsten
  • 19° / 26° / 36° / 50° optional lenses
  • Local knob dimming and removable track adapters for easy implementation

LIGHT SOURCE

  • Source: 28W CREE LED
  • CCT: (TU) 3.000K
  • Luminous flux: (TU) (19°) 563 lm – (26°) 554 lm – (36°) 582 lm – (50°) 552lm @full
  • Lux: (TU) (19°) 330 lx – (26°) 180 lx – (36°) 96 lx – (50°) 51lx @5 m full
  • CRI: (TU) >92
  • TLCI: (TU) >90
  • TM30 Rf: (TU) >90
  • TM30 Rg: (TU) >97
  • Source life expectancy: 70.000 hrs (L70 @25° C / 77° F)

OPTICS

  • Beam angle: optional 19° / 26° / 36° / 50°
  • Lens type: high-quality glass lens optics



DYNAMIC EFFECTS

  • Fixed gobos: gobo holder included in optics
  • Gobo size: E, outer: 37,3 mm – image: 24 mm – thickness: 1,1 mm
  • Static colour mode:

BODY

  • Body: sturdy aluminum profile
  • Body colour: RAL 9003



ELECTRONICS

  • Dimmer: linear 0 ~ 100%, manual knob dimmer
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation



ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 22W
  • Power factor: >0,40

PHYSICAL

  • Cooling: passive cooling and fan-free
  • Power connection: track adaptor (EUTRAC, STAFF, GLOBAL, IVELA compatible)
  • IP rating: 20
  • Dimensions (WxHxD): 112x210x226mm / 4.41”x8.27”x8.9”
  • Weight: 1,2kg / 2.65lbs


MUSGAL220 MiniProfile TR White datasheet .pdf    492.46 KB
MUSGAL220 MiniProfile TR White manual .pdf    2.44 MB
