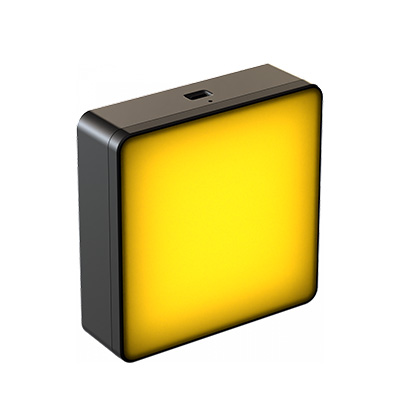

EclNanoPanel TWC

The EclNanoPanel TWC is the smallest member of the successful EclPanel range, containing all the outstanding features of the larger format soft lights in a compact-sized, battery-operated luminaire with a surprisingly powerful 1,800-lumen output.



Description

This compact fixture has the same colour technology as the other soft lights, producing rich colours, high-quality white tones, colour gel matching, and onboard pixel cinema effects.

The EclNanoPanel TWC has three precision encoders with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

Each of the four sections has individual or simultaneous control, allowing to play customizable, cinematic effects through its FX engine or from a console.

Magnetized beam-shaping optical accessories are available, including eggcrates, barndoors, diffusers, and threads for easy mounting on stands or camera rigs.

The fixture is controlled from its user interface or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

Product Features:

  • Compact-sized soft light with wireless control (CRMX and W-DMX) and battery-powered
  • 30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output
  • Magnetized beam-shaping optical accessories are available

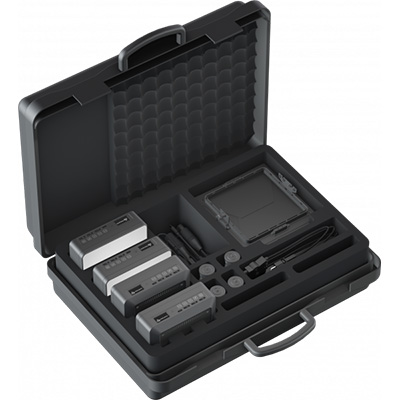

The ECLNanoPanel TWC also comes in a Pack of 4 which includes (Code: MUSECL701):

  • 1 x ABS case
  • 4 x ECLNANOPANELTWC Low Diffusion filter (Code: MUSECL730)
  • 1 x 4-way charger
  • 4 x position articulated joint (Code: MUSECL753)
  • 4 x barndoors (Code: MUSECL716)
  • 4 x Y Cable from XLR 5P male, XLR 5P female and USB-C female to USB-C male
  • 1 x User Manual



LIGHT SOURCE

  • Source: 30W RGB + Warm White
  • Luminous flux: 1’829lm @3.200 K with LD filter
  • Lux: 690lx @1 m
  • CRI: 94,6 @3.200 K; 94,9 @5.600 K
  • R9: 97,1 @3.200 K; 96 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 97,7 @3.200 K; 89,3 @5.600 K
  • TM30 Rg: 102,5 @3.200 K; 102,3 @5.600 K
  • Source life expectancy: > 50.000 h

OPTICS

  • Beam angle: 105°
  • Field angle: 159°
  • Lens type: magnetic light density diffusion panel (interchangeable)
  • Additional optics: see available accessories

COLOUR SYSTEM

  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: CCT control range from 2.200K to 15.000K, + / – green correction, tungsten emulation
  • White presets: 2,800 K – 10,000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • FX generator: 4 controllable sections
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Body: sturdy policarbonate body
  • Body colour: black

CONTROL

  • Protocols: CRMX+W-DMX, DMX512, RDM
  • Stand Alone: selectable mode through 3 rotatory knobs
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1+ENPTWCYCABLE) not included
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
  • Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 36.000 Hz

ELECTRICAL

  • Max power consumption: 32 W
  • Mains power supply: DC 12V
  • Power factor: >0,97

BATTERY

  • Battery: 11.1V lithium
  • Estimated battery life: (selectable) 2 h – 6 h – 8 h – 12 h – 18h
  • Re-charge connection: USB type C
  • Re-charge time: 2,5h/max
  • Battery status: shown on display

PHYSICAL

  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: M5 and 1/4” threaded insert for easy installation
  • Adaptors: USB type C to XLR connectors
  • Low Voltage DC connector: USB type C
  • Dimensions (WxHxD): 150x150x69.5mm / 5.91”x5.91”x2.74”
  • Weight: 1,2kg / 2.65lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

  • 1 x ECLNANOPANELTWC
  • 1 x battery charger
  • User Manual


MUSECL700 Ecl nano panel twc Datasheet.pdf    316.2 KB
MUSECL700 Ecl nano panel twc MANUAL.pdf    3.08 MB
