Description

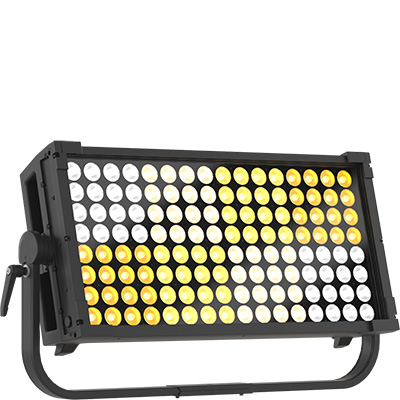

Its optical system, equipped with a 6-colour LED array and collimator lenses controllable in 8 sections, producing a 20° native beam angle. This configuration enhances lux intensity for long throw uses and broadens the light spectrum, resulting in superior light quality. The EclPanel IPHard can be transformed into a soft light source by attaching optical modifiers to its accessory points.

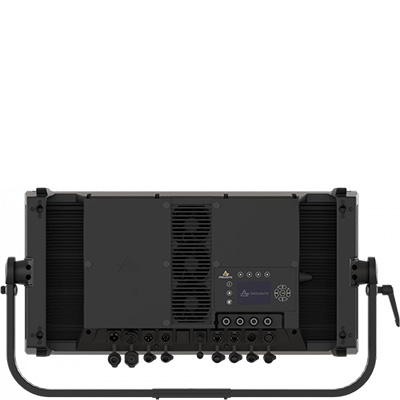

Constructed with durable die-cast magnesium alloy, the IP65 rating of the housing makes the unit water and dust resistant, suitable for challenging environments and sets. The fixture incorporates an onboard power supply and processing unit, facilitating easy setup and operation. It features a 3.5” large display, a user-friendly interface, and comprehensive connectivity options, including both wired and wireless capabilities.
Further enhancing its versatility, the unit supports per-section control for custom or desk-created effects. For added portability, the EclPanel IPHard accepts power via 24-36V batteries and a 48V DC input. Its flexibility extends to control options, compatible with DMX & RDM, Ethernet protocols, remote operation via ControlGo, and wireless CRMX.
Main Features:
- 550W 6 colour Hard Light in 2×1 format with 20° beam angle
- IP65 water and dust resistant
- 8 section pixel control and built-in lighting effects for film applications
- Silent operation with multiple fan modes
