EclPanel TWCJr

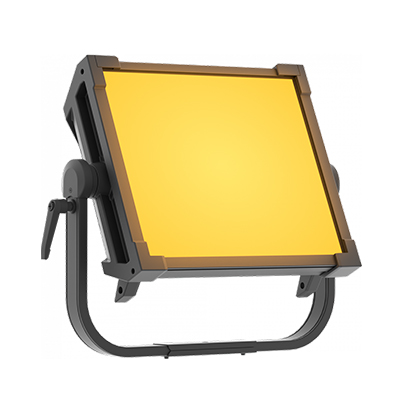

EclPanel TWCJr, is the compact 1×1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWCJr comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30.

Description

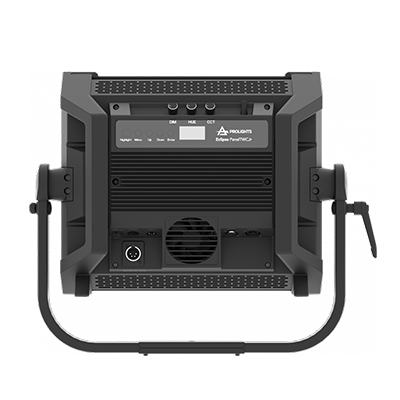

The EclPanel TWCJr allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects. The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk. Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects. The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWCJr offers easy rigging and cabling making it the perfect lighting tool for every location.



Features:

  • 370 W RGB + Warm White LED source
  • CRI > 94; R9 > 88,8; TLCI > 92
  • 4 section pixel control and built-in lighting effects for cinema applications
  • Silent operation with multiple fan modes
  • Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)

LIGHT SOURCE

  • Source: 370W RGB + Warm White
  • Luminous flux: 17’109lm @4.000 K with LD filter
  • Lux: 265lx @5 m full
  • CRI: 90 @3.200 K; 94 @5.600 K
  • R9: 84,1 @3.200 K; 88,8 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 90 @3.200 K; 89,4 @5.600 K
  • TM30 Rg: 105 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h



OPTICS

  • Beam angle: 102°
  • Field angle: 158°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories



COLOUR SYSTEM

  • Colour mixing: RGB + Warm White
  • CTC: CTC control, + / – green correction, Tungsten emulation
  • White presets: 2.800 K – 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros



DYNAMIC EFFECTS

  • Control Resolution: 16bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours



BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: black



CONTROL

  • Protocols: DMX512, RDM, W-DMX, rotatory knob
  • Stand Alone: selectable mode through 3 rotatory knobs
  • Pixel control: 4 section control
  • W-DMX: included, wireless solution receiver
  • RDM: RDM ready for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included



ELECTRONICS

  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz



ELECTRICAL

  • Mains power supply: 100-240 V – 50/60 Hz
  • Low Voltage DC mains: 24-36V
  • Max power consumption: 230W
  • Power factor: >0,97



PHYSICAL

  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: XLR 4p
  • IP rating: 20
  • Dimensions (WxHxD): 529x430x144 mm / (with PO system) 546x430x144mm / 20.83”x16.93”x5.67”
  • Weight: 10,5/()11,8kg / 23.15lbs
