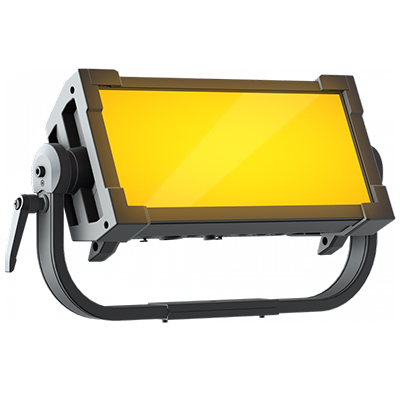

EclPanel TWC Mini 2×1

The EclPanel TWCMini2x1 is an ultra-compact LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the EclPanel TWCMini2x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.

Description

The EclPanel TWCMini2x1 is an ultra-compact LED soft light that provides a beautiful, wide source of soft and precise colours.

In addition to this, the EclPanel TWCMini2x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.

The EclPanel TWCMini2x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

Each of the 2 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.

The EclPanel TWCMini2x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels. Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48Vdc).



Features:

  • 115W RGB + Warm White LED source
  • CRI >94; R9 >88,8; TLCI >92
  • 2 section pixel control and built-in lighting effects for cinema applications, colour gel matching
  • Silent operation with multiple fan modes
  • Wireless DMX (CRMX+W-DMX), Ethernet connectivity, low voltage inputs (24-36V, 48Vdc)

Find out more of the PROLIGHTS EclPanel range here

LIGHT SOURCE

  • Source: 115W RGB + Warm White LED
  • Luminous flux: 7’642lm @3.200 K with MD filter
  • Lux: 124lx @5 m full
  • CRI: 93 @3.200 K; 94 @5.600 K
  • R9: 90 @3.200 K; 92 @5.600 K
  • TLCI: 91 @5.600 K
  • TM30 Rf: 91 @3.200 K; 90 @5.600 K
  • TM30 Rg: 105 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h



OPTICS

  • Beam angle: 98°
  • Field angle: 153°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories



COLOUR SYSTEM

  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Color Macros, CTO on colors
  • Colour mixing: RGB + Warm White
  • CCT: CCT control range from 2.200K to 15.000K, + / – green correction, tungsten emulation
  • White presets: 2.800 K – 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board



DYNAMIC EFFECTS

  • Control Resolution: 16bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours



BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: black



CONTROL

  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • Stand Alone: selectable mode through 3 rotatory knobs
  • Pixel control: 2 linear section control
  • Wireless Control: integrated, CRMX + WDMX TRX
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included



ELECTRONICS

  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz



ELECTRICAL

  • Mains power supply: 100-240 V – 50/60 Hz
  • Low Voltage DC mains: 24-36V
  • Max power consumption: 130W
  • Power factor: >0,93



PHYSICAL

  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: XLR 4p
  • IP rating: 20
  • Dimensions (WxHxD):  529x276x144mm  / (with PO system) 547x396x144mm
  • Weight: 6kg


MUSECL500 ECLTWCMini 2x1 datasheet.pdf    379.55 KB
MUSECL500 ECLTWCMini 2x1 Manaul.pdf    5.71 MB
