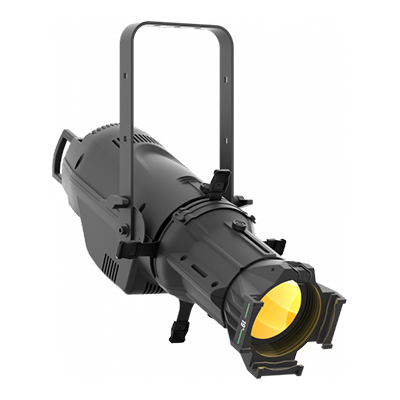

EclProfile CT PLUS

EclProfile CT+ is a high quality, six colour mixing LED ellipsoidal.

Description

Designed to reach the finest quality of light for white tones and colour spectrum, its custom LED array and powerful on-board colour control allows to reach bright and high-quality whites, up to 97 of CRI, keeping a consistent output and ensuring a total control of the light. The wide feature set includes special theatrical functions such as tungsten emulation on dimming, colour gels, virtual CTO and studio  functions, such as +/- green correction on linear white CCT.

Features:

  • Linear white CCT from 2.800 K to 10.000 K with CRI up to 97.
  • RGB / CMY / HSI 3 ch colours control of the six colours LED array for easy access to any desired colour.
  • Industry standard colour gels matching, tungsten emulation on dimming, tint control (+/- green).

Accessories:

ES-RC-L100 8 unit profile case

LIGHT SOURCE

  • Source: Luxeon-C; 96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
  • CCT: @full 5.000K
  • Luminous flux: (5°) 3’805 lm; (10°) 4’790 lm; (14°) 5’047 lm; (19°) 5’380 lm; (26°) 6’681 lm; (36°) 6’814 lm; (50°) 5’773 lm; (70°) 7’430lm @full
  • Luminous flux: (zoom 15°-30°) (min angle) 5’290 lm; (max angle) 6’664 lm – (zoom 25°-50°) (min angle) 7’042 lm; (max angle) 9’817 @full
  • Lux: (5°) 14’638 lx; (10°) 8’663 lx; (14°) 3’812 lx; (19°) 2’530 lx; (26°) 1’759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306lx @5 m full
  • Lux: (zoom 15°-30°) (min angle) 3’502 lx; (max angle) 1’800 lx – (zoom 25°-50°) (min angle) 2’608 lx; (max angle) 974lx @5 m full
  • CRI: 93,7 @3.200 K; 97,6 @5.600 K
  • R9: 98,6 @3.200 K; 98,2 @5.600 K
  • TLCI: 95 @5.600 K
  • TM30 Rf: 92 @5.600 K
  • TM30 Rg: 100,1 @5.600 K
  • Source life expectancy: > 50.000 h

OPTICS

  • Lens type: high-quality glass lens optics
  • Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50°
  • Focus: manual
  • Other: see available accessories

COLOUR SYSTEM

  • Colour mixing: RGB, Royal Blue, Mint, PC Amber
  • CCT: CCT control, + / – green correction, tungsten emulation
  • White presets: 2.700 K ~ 10.000K
  • Colour wheel: colour gels matching and RGB / HSI / CMY selectable colour mode

DYNAMIC EFFECTS

  • Gobo size: B, outer: 86 mm – image: 64,5 mm – thickness: 1,1 mm
  • Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM
  • Stand Alone: selection of static colours, white presets, manual colours and built-in effects with adjustable speed
  • DMX channels: UNO / DUO / Basic / Standard / Extended channel
  • RDM: RDM ready for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included (through dedicated software)
  • Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 25 Hz, electronic
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 264W
  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,95

PHYSICAL

  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning

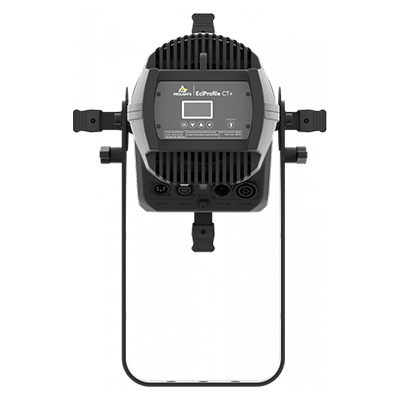

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • IP rating: 20
  • Dimensions (WxHxD): 264x259x539mm / 10.39”x10.2”x21.22”
  • Weight: 7,9kg / 17.42lbs

BOX CONTENT

  • 1 x ECLCTPLUS
  • 1 x 1,5 meters SCHUKO – NEUTRIK POWERCON TRUE1 power cable
  • 1 x Calibration Report
  • User Manual



ECL CTPLUS DATASHEET.pdf    448.8 KB
ECL CTPLUS USER MANUAL.pdf    7.99 MB
