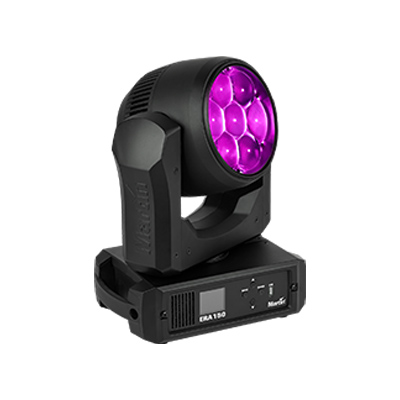

ERA 150 Wash

The Martin ERA 150 Wash moving-head LED wash fixture provides class-leading lumen output, high-intensity narrow zoom and full-gamut colour calibration for accurate colour reproduction and colour temperature control, making it an incredibly versatile yet affordable workhorse lighting solution for rentals, installs and touring.

Description

The ERA 150 Wash takes performance even further thanks to a newly designed optical system that produces a wider zoom range, higher output and wide uniform wash field. Other advancements include advanced colour-calibration features including extended colour mode and a CTC channel that can modify RGB channels.

Whether lighting a theatre production, live concert, exhibition or corporate event, fill the stage with colour and create brilliant, focused beam effects with this flexible moving-head fixture that brings new versatility to the designers’ toolbox.

Product Features:

  • Light engine: LED 7 x 40W RGBW
  • Full-gamut colour calibration
  • CTC control: 2,800–10,000 K
  • High output: 3,900 lumens
  • High intensity 373,000 cd
  • Zoom: 4.2 – 58˚
  • Low-noise cooling system
  • High-speed pan/tilt & zoom
  • Weight 7.3 kg (16.1 lbs.)
  • Dimensions: 276 x 176 x 356 mm (10.9 x 7.0 x 14.1 in.)

PHYSICAL

  • Length: 276 mm (10.9 in.)
  • Width: 176 mm (7.0 in.)
  • Height: 356 mm (14.1 in.)
  • Weight: 7.3 kg (16.1 lbs.)

DYNAMIC EFFECTS

  • Colour mixing: RGBW
  • Colour presets: 48 colour presets, virtual colour wheel effects
  • Colour temperature control: Variable 1,800 – 10,000 K
  • Electronic dimming: 0 – 100%, four dimming curve options
  • Strobe and pulse effects: Variable speed and action, random strobe
  • Electronic shutter effect: Instant open and blackout
  • Zoom: Motorized, 4.2 – 58°
  • Pan: 540°
  • Tilt: 260°

CONTROL AND PROGRAMMING

  • Control options: DMX, RDM
  • DMX channels: 18
  • 16-bit fine control: Dimming, RGB, zoom, pan and tilt
  • LED colour management modes: Raw, extended and calibrated
  • DMX address setting: Control panel with LCD display
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Fixture software update: USB memory device or over DMX link

OPTICS

  • Light source: 7 x 40 W RGBW Osram LEDs
  • Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
  • Beam angle (half-peak): 4.2° – 38.7°
  • Field angle (one-tenth peak): 5.1° – 58.6°
  • Cutoff angle (3%): 5.7° – 69.6°
  • Binning: Tight colour and flux binning
  • Calibration: Full Gamut Colour Calibration
  • *Figure obtained under manufacturer’s test conditions

CONSTRUCTION

  • Housing: High-impact flame-retardant thermoplastic
  • Colour: Black
  • Protection rating: IP 20

INSTALLATION

  • Mounting points: 2 x quarter‐turn fastener receptacles, 106.5 mm
  • Location: Indoor use only, must be fastened to surface or structure
  • Orientation: Any
  • Minimum distance to combustible materials: 0.5 m (1.7 ft.)
  • Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
  • Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)

CONNECTIONS

  • AC power input/output: Neutrik PowerCON TRUE1 TOP
  • DMX and RDM data in/out: Neutrik 5-pin locking XLR

ELECTRICAL

  • AC power: 100-240 VAC (nominal), 50/60 Hz
  • Typical power consumption: 315 W
  • Typical half-cycle RMS inrush current at 240 VAC: 8.7 A
  • Power supply unit: Auto-ranging electronic switch mode
  • *Per IEC 60898/UL489/CSA C22.2 No. 5
  • Recommended Miniature Circuit Breaker: Type D*

MAXIMUM POWER AND CURRENT

  • 100-120 V, 60 Hz : 3.3 A, 340 W, Power factor 0.993
  • 220-240 V, 50 Hz: 1.5 A, 340 W, Power factor 0.966
  • *Measurements made at nominal voltage with all LEDs at full intensity.
  • Allow for a deviation of +/- 10%.

THERMAL

  • Cooling: Forced air (temperature regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)
  • Total heat dissipation (calculated): 1195 BTU/hr.
  • *Calculated, +/- 10%, at full intensity, full white

ACOUSTIC DATA

  • Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.0 dB(A)

APPROVALS

  • Australia/NZ: RCM
