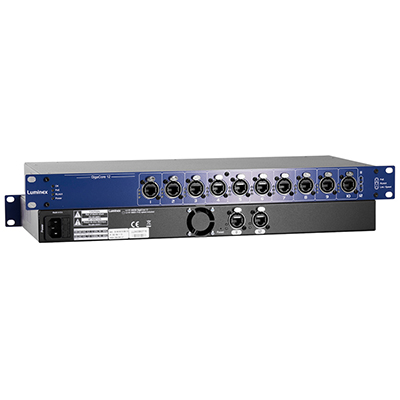

GigCore 12 with PoE

Categories: , , , SKU: LMXGIG013

A pre-configured ethernet switch designed for professional AV solutions, perfect for touring and live events.


Assign all your lighting, audio and video protocols to diff erent colour groups and send them over the same network. Luminex takes care of the rest and makes sure every device receives the right signal (ArtNet, sACN, MANet, Dante™, RAVENNA/AES67, Q-LAN, PTPv2 IEEE1588-2008 and many more …).

Tailored for AV industry
Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.
Easy set-up
Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).
Touring approved
Metal housing and ruggedized Ethercon connectors, ideal for touring and live events.
Converged networking
Transfer multiple protocols (Dante™, RAVENNA/AES67®, ArtNet, MANet 1&2, sACN,Q-LAN …)
Ultimate link redundancy
RLinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.
Don’t worry about power plugs anymore. PoE+ powers-up all compatible devices within the network.


Product Features:

  • Most suitable applications: Touring and live events
  • PoE: Optional on front ports only (up to 160W)
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: 4Mb
  • MAC address table: 8192 Entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput: 32Gbps
  • Jumbo frames: MTU up to 9600
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
GigaCore_12_User_Manual-rev-2.8.7.pdf    5.55 MB
Product-specification-sheet-GigaCore-v4.0.0 (1).pdf    161.15 KB
