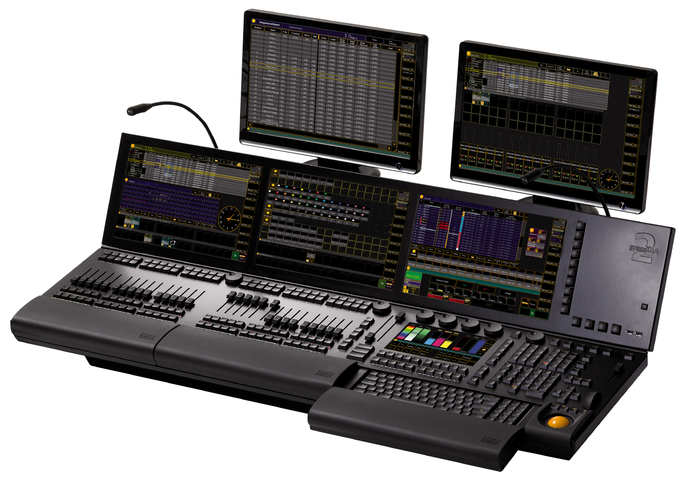

GrandMA2 Full-Size dustcover & lamp

The new signature console of MA Lighting is the grandMA2 full-size. It controls all kinds of lighting genres like conventionals, moving lights, LEDs, video and media.

DISCONTINUED – Please call your nearest office for more information or a recommended replacement product.



Equipped with the most up-to-date technology and even some special tools (e.g. keyboard drawer or multi-touch command screen) the grandMA2 full-size is at home in all lighting segments. Intuitive and fast control over all connected fixtures and channels in different styles is self-evident. Furthermore the newly developed faderwing provides in addition up to 60 extra faders over almost unlimited amount of pages.

Moreover the grandMA2 full-size can read series 1’-showfiles and is able to run in a special ‘series 1’-mode. That means full compatibility with ‘series 1’-sessions. All command keys within the new series can be found in the same place for easy operation. The grandMA2 offers a highly flexible and comfortable way of programmig, including nearly infinite numbers of presets, cues, pages, sequences and effects.

  • Real-time control for 65,536 parameters per session in connection with MA NPUs (up to 256 DMX universes)
  • 8,192 HTP -/LTP-parameters built in (6 x DMX out)
  • 3 internal TFT wide mode touchscreens (15,4” WXGA)
  • 2 external TFT screens (UXGA,touchscreens accepted)
  • 1 internal command screen – multi-touch (9″ SVGA)
  • 30 motorized executor faders
  • Integrated keyboard drawer
  • Built-in uninterruptible power supply (UPS)
  • 2 etherCON connectors, 5 USB 2.0 connectors
  • Motorized monitor wing
  • 2 motorized A/B fader 100mm
  • Individually backlit and dimmable silent (clickless) keys
Technical specifications for Art.-No.: 120111
Operating voltage/ Supply voltage 120V/230V, 50/60Hz (automatic detection)
Power 350VA
Dimensions 1,284 x 204 x 661mm / 50.6 x 8 x 26inch
Net weight 46kg / 101lbs
Output connectors 6 x XLR 5pin (DMX), 2 x DVI (external monitor), 2 x etherCON, 1 x MA Link (grandMA2 fader wing), 5 x USB, 1 x DIN (MIDI), 2 x XLR 4pin (desklight)
Input connectors 1 x XLR 5pin (DMX), 1 x XLR 3pin (Sound), 1 x XLR 3pin (SMPTE), 1 x DIN (MIDI), 1 x Sub-D 25pol (Analogue Remote), 1 x powerCON
There are no downloads available for this product!
