GrandMA2 Replay Unit

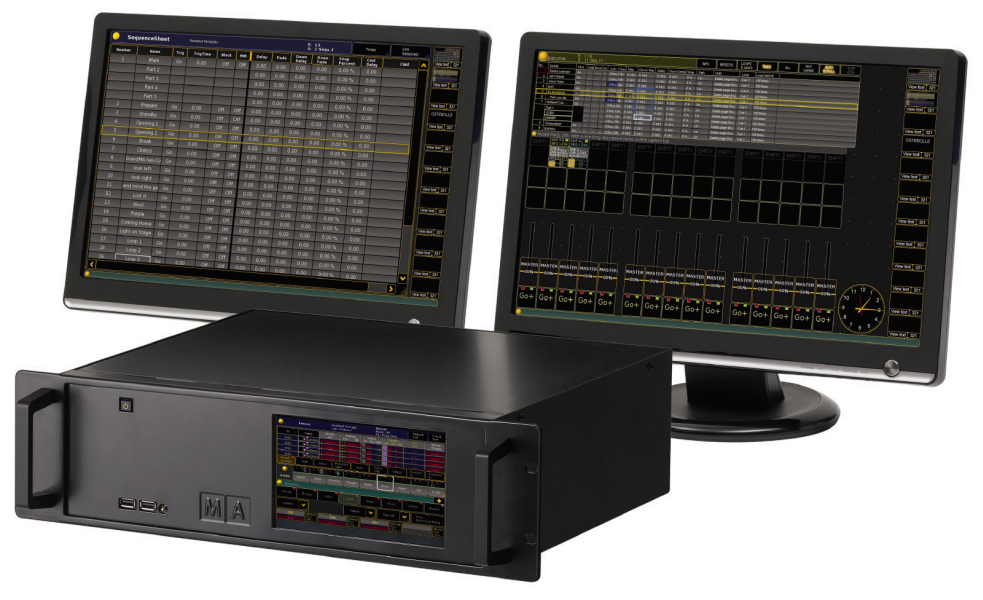

The grandMA2 replay unit offers the same features and functions as the grandMA2 consoles in a 19″ housing. It can be easily built into a rack and is therefore perfect for fixed installations like theatre, studio or architectural lighting control or as a backup solution.



Description

The grandMA2 replay unit is a very safe playback/master controller, because there are no built-in faders or buttons to avoid faulty operations. Instead, the unit is operated by using the integrated touch screen or a mouse and keyboard, connected via USB. A wide range of interfaces assures the most flexible use and the best performance within architectural systems.

  • Real-time control for up to 65,536 parameters per session in connection with MA NPU (equivalent to 256 DMX universes)
  • 4,096 HTP/LTP parameters
  • 6 DMX outputs
  • 2 external TFT screens can be connected (UXGA, touchscreens accepted)
  • 1 internal command touchscreen (7″)
  • powerCON In and Out
  • 2 etherCON connectors
  • 3 USB2.0 connectors
  • Various control interfaces
Technical specifications for Art.-No.: 120115
Operating voltage/ Supply voltage 120V/230V, 50/60Hz (automatic detection)
Power 150VA
Dimensions 485 x 445 x 126mm / 19 x 17.5 x 5inch
Net weight 11.3kg / 25lbs
Output connectors 6 x XLR 5pin (DMX), 2 x DVI (external monitor), 2 x etherCON, 1 x MA Link (grandMA2 fader wing), 3 x USB, 1 x DIN (Midi), 2 x XLR 4pin (Desklight)
Input connectors 1 x XLR 5pin (DMX), 1 x XLR 3pin (Sound), 1 x XLR 3pin (SMPTE), 1 x DIN (Midi), 1 x Sub-D 25pol (Analogue Remote), 1 x powerCON
