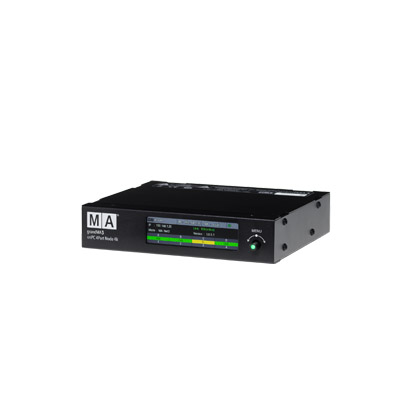

grandMA3 onPC 4Port Node 4k

Categories: , , , , SKU: MALNOD340

The grandMA3 onPC 4Port Node 4K enables 4,096 parameters with the grandMA3 onPC software offering 4 frame-synchronous DMX outputs.


The half width, 1RU housing is the perfect size for touring and fixed applications. A unique bracket accessory allows for alternative fixing methods if required.

MA Lighting offers the perfect solutions for getting started with. Simply download the grandMA3 onPC software and connect to any of the “onPC” products to unlock parameters.

The amount of DMX outputs varies with each onPC product but all of them unlock parameters for the full grandMA3 software functionality. There is no compromise in feature set and the range of products allow you to make the right choice for your budget or individual needs.

There are two choices for onPC solutions: the grandMA3 onPC command wing, which offers the ultimate grandMA3 mobile solution; and the grandMA3 onPC xPort Nodes, which offer the most cost-effective DMX output solution for software only show control.

All grandMA3 onPC xPort Nodes are equipped with a powerful processor and a 1000Mbit/s Ethernet connection to ensure the most reliable and stable Ethernet to DMX and vice versa conversion.

Every grandMA3 onPC xPort Node is capable of handling MA-Net3, MA-Net2, sACN and Art-Net data and is fully RDM compliant. A 50mm monitor on the front face allows for simple configuration and provides a quick overview of the status of each Node.

System requirements for grandMA3 onPC for Windows or Mac (as of grandMA3 v1.0.0.3):

  • Operating System:
    • Windows 10 64-bit or later (with admin rights)
    • Apple macOS Sierra 10.12.6 or later
  • Processor:
    • 6th generation Intel Core CPU (processor based platform) or later, with 4 or more cores and SSE 4.2
    • Comparable AMD CPU to the above
  • RAM:
    • Minimum: 8 GB
    • Recommended: 16+ GB
  • Hard Disk:
    • Minimum: 32 GB of available space
    • Recommended: SSD (solid-state)
  • Graphic Card / GPU:
    • Any card with hardware acceleration, OpenGL 4.1 support
    • Minimum: 1024 MB VRAM
    • Recommended: 4096 MB VRAM
  • Monitor Resolution:
    • 1920×1080 or higher
  • Network Card:
    • 1000BASE-T


Additional Requirements:

  • To use grandMA3 onPC in session with grandMA3 consoles, a minimum of 16 GB of RAM is required.
  • To use the online Help Manual and download the latest version of grandMA3 onPC, make sure you have internet access.
  • To save the software on a USB flash drive, use a USB 2.0 or 3.0 port, with the USB stick formatted as FAT-32.
MALNOD340 grandMA3_onPC_4Port_Node_4k datasheet.pdf    925.21 KB
