Description

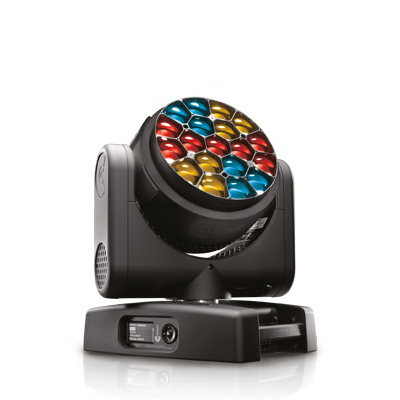

A sophisticated effect engine has made it easier to routinely use macro effects, which would otherwise be difficult to program. These technological innovations make the B-EYE a versatile product: it is a high-performance LED wash light, a perfect beam light, and a spectacular visual effect projector all in one. It has won several awards and been copied by countless manufacturers over the years.
Today Claypaky offers HY B-EYE, that is TWICE MORE POWERFUL and bright than B-EYE. It even offers more VERSATILITY and more INTERACTIVITY with the media servers (Kling-Net protocol included), it is very SILENT while featuring the same size and same control mode as the B-EYE.
- Source Type: 19 x RGBW LED Osram OSTAR – Stage II LE RTDUW S2WN (6000 K)
- LED Nominal Wattage: 40W
- Versatile, three operating modes: wash, beam, FX effect
- 4°-60° Zoom range and even light spread
- Individual LED control for each parameter
- Invisible front grid
- Beam edge softening control (in wash mode)
- Exclusive parallel beam consisting of an array of individually controllable micro-beams
- Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability
- Art-Net / RDM
- Arkaos Kling-Net protocol already included in the firmware
- Rotating front lens for countless vortex effects, for aerial or “kaleidoscopic” projection use
- White CT Emulation 2500-8000K
- RGB auto-tuning to lamp CT Emulation
- Tungsten Lamp Emulation
- Weight: about 21 Kg (60.6 lbs)
POWER SUPPLIES
– 100-240V 50/60Hz
INPUT POWER
– 1100 VA at 230V 50Hz
LIGHT SOURCE
– 19 RGBW LEDs driven at 30 Watt
– Type: OSRAM OSTAR – Stage II LE RTDUW S2WN
– Color Temperature: 6,000 K
– Life: 50,000 hrs
OPTICS
– 4°-60° Electronic Zoom Range
EFFECTS SECTION
– Three operating modes: wash, beam, FX (Kaleido effects)
– Bi-directional Rotating Front Lens
– Digital Wash-Beam Framing effect
– Beam edge softening control (in Wash mode)
– Pixel Patterning Macros with enhanced control
– 0-100% linear electronic dimmer
– Adjustable speed stop/strobe effect, with instantaneous blackout
– Dedicated channel for color temperature setting
– White CT Emulation 2500-8000K
– RGBW auto-tuning to lamp CT Emulation
– Tungsten Lamp Emulation
– Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
CONTROL AND PROGRAMMING
– DMX protocol signal: USITT DMX 512
– Art-Net / RDM
– Arkaos Kling-Net protocol already included in the firmware
– Display: Graphic LCD backlit b/w Display
– Pan/Tilt Resolution: 16 bit
– Dimmer Resolution: 16 bit
– Movement control: vectorial
– DMX signal connection: 3 and 5 pole XLR input and output
– Software upload through DMX input
BODY
– Aluminium structure with die-cast plastic cover
– Two side handles for transportation
– PAN and TILT lock for transport and maintenance
MOVING BODY
– Movement by means of two stepper motors, controlled by microprocessor
– Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
Travel:
– PAN = 540°
– TILT = 210°
ELECTRONICS
– Long-life auto-charging buffer battery
– Preset colour and graphic effect macros
– Function reset controllable from a central control unit
– Menu-driven internal self-test function
– Ethernet ready with RJ45 socket
– Display: backlit black-and-white graphic LCD display
– Electronic check-up of every single parameter with error alarm
– DMX level monitoring on each channel
– Automatic internal data transmission error diagnostics
– Firmware upgrade even when the unit is not connected to the power supply
– Firmware transfer from one light to another
SAFETY DEVICES
– Automatic power safety derating in case of overheat of the LED board
– Forced ventilation
WORKING POSITION
– Working in any position
– Hanging system: with fast-lock omega clamps (1/4 turn) on the base
CE MARKING
In conformity with the European Directives:
– 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
– 2014/30/EU – Electromagnetic Compatibility (EMC)
– 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
– 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)
WEIGHT
– 20.7Kg (60.6 lbs)
