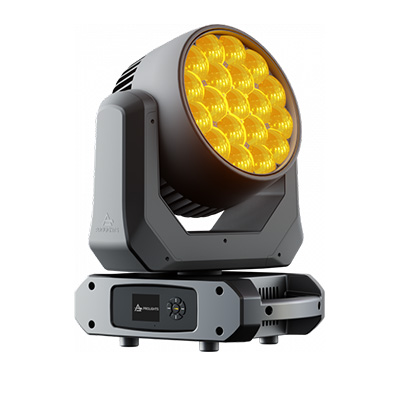

Jet Wash19

The Jet Wash19 is a compact and fast LED moving wash light with motorized zoom control.

Description

The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 52°, this unit can easily work as beam or wash light.
The Jet Wash19’s colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.

Product Features:

  • Compact form factor and fast movements
  • Zoom from 4° to 52° with high optical efficiency
  • Precise white CCT and colour mixing

LIGHT SOURCE

  • Source: 19x20W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 3019 lm – (52°) 5337m @full
  • Lux: (4°) 23781 lx – (52°) 682lx @5 m full
  • Source life expectancy: > 50.000 h

OPTICS

  • Zoom: 4° – 52° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics

COLOUR SYSTEM

  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / – green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 233°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: RAL 9004

CONTROL

  • Protocols: DMX512, RDM
  • DMX channels: 23channel
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 350W
  • Output (at 230V): up to 15 units on a single power line
  • Power factor: > 0,94

PHYSICAL

  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 396x487x250mm / 15.59”x19.17”x9.84”
  • Weight:14,7kg / 32.41lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM
  • BOX CONTENT
  • 1 x JETWASH7
  • 1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON TRUE1 IP65)
  • 1 x OS24
  • User Manual
