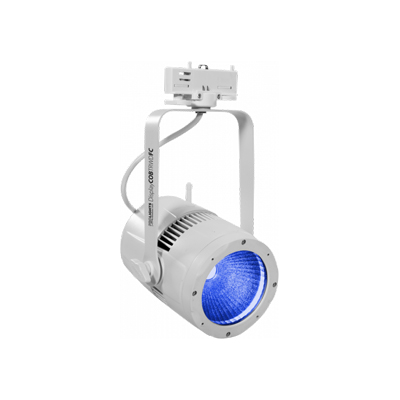

LED Display COB FC Track WDMX White

Featuring elegant white housing and wireless DMX module on-board allowing remote control of the light making it a perfect and innovative solution for installations in commercial spaces, showrooms, museums and churches.

Barndoor CODE: MUSDIS115



Description

LED Display COB FC Track WDMX White employs 60W COB LED source RGB/FC combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output and interchangeable lens systems to switch from 60°(incl.) to 30°(incl.) and 15° (opt.)

Features:

  • Track mounted compact LED PAR with 60W FC COB source and wireless DMX control
  • HD dimming and an extensive and even colour palette
  • Flexible lens options of 15°, 30° and 60° and functional barn doors

LIGHT SOURCE
Source: 60W COB RGB LED
Luminous flux: 2055lm
Lux: (60°) 122.7lux @3m full
Lux: (30°) 358.5lux @3m full
Source life expectancy: >30.000 h

OPTICS
Beam angle: 60°
Field angle: 80°
Lens type: dichroic parabolic reflector in combination with HD fresnel lens
Additional optics: 30° (inc) – 15° (opt)

COLOUR SYSTEM
Colour mixing: RGB/FC
White presets: 3200~10000K
Colour wheel: virtual colour wheel with presets
Macros: built-in white presets

DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black

CONTROL
Protocols: DMX512
DMX channels: 3 / 5 / 8channel
W-DMX: included, wireless solution receiver
Display: black OLED high resolution display
Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS
Dimmer: linear 0~100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1-28 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
Selectable PWM: 600~25K Hz

ELECTRICAL
Power supply: 100-240V – 50/60Hz
Power consumption (at 230V): 75W
Power consumption (at 120V): 70W
Output (at 230V): 24 units on a single power line

PHYSICAL
Cooling: natural cooling of the peculiar chassis and to absence of fans
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: XLR 5p IN/OUT connectors
Power connection: moulded IP power IN connector
IP rating: 20
Dimensions (WxHxD): 166x118x250mm
Weight: 1.85kg
