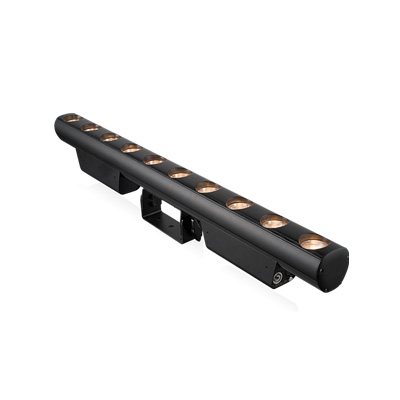

LED Sunstrip shifter

The LED Sunstrip shifter provides the option of changing colours from amber to 3100K White and allows for individual pixel control to create stunning pixel mapping effects.

Description

LED Sunstrip shifter features:

  • “Red shift” colour shifting from amber to 3100K white
  • Individual pixel control for stunning pixel-mapped effects
  • Variety of dimming curves to accurately evoke the look and feel of this classic effect
  • Selectable LED frequencies (from 600Hz ~ 25kHz) for flicker-free performance on camera
  • DMX control, Master/Slave
Photometrics
Lamp Source 10W 3100K White + Amber LEDs
Beam Angle 16°
Field Angle 37°
Output 5658 lm / 1608 LUX @ 5 meters
Key Features
Colour Output Amber to Warm White
Pixel Matrix 10 x 1
Strobe 0-30 Hz
Dimming 4 dimming curve modes
Control
Protocol DMX
DMX Channels 3 / 5 / 6 / 8 / 9 / 21 / 27
Display OLED function menu with 4 touch buttons
Power
Mains 100V-240V 50/60 Hz
Consumption 151W
Power connections PowerCon In/Out
Data connections XLR In/Out for DMX
Power Linking Up to 16 units @230V / Up to 8 units @120V
Housing
Material Plastic and steel



Finish Matte black



IP rating IP20



Thermal
Cooling Convection
Physical
Dimensions 1000 x 79 x 158 mm
Weight 6 KG


LEDBAR011 - Sunstrip Shifter Datasheet.pdf    110.92 KB
LEDBAR011 - Sunstrip Shifter Manual.pdf    4.05 MB
LEDBAR011 Sunstrip Shifter GMA Fixture Profiles.zip    40.46 KB
