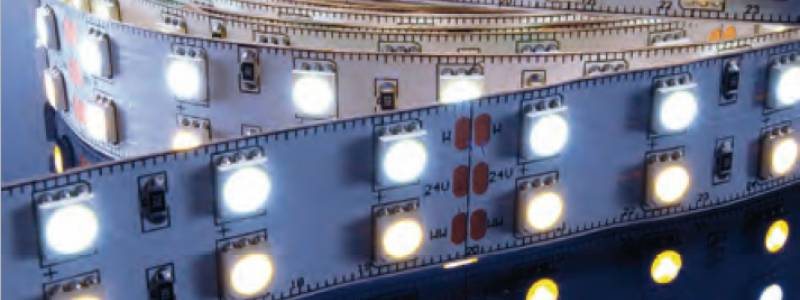

LED Tape RGB+WW (120 LED/m) IP20 5m Roll

Categories: , , , SKU: LEDTAP102 Tag:

LED Strip with RGB + Warm White LEDs offers colour mixing that can reach a CRI above 80 and is therefore suitable for all kind of commercial installations.

Description

The LED Strips are specially designed to catch your customers attention by setting products or a complete area into perfect light. Just select your favourite colour temperature and add additional colours to change the CRI according to your demands. We carry suitable controllers to make the complete installation as easy as possible.

  • Flexible LED strip, with 5050 R, G, B, WW LEDs
  • Choose your favourite Warm White colour
  • Adjust the CRI by simply adding another colour and set your product in the perfect light
  • Adhesive tape on the back for easy installation
  • The strip is cuttable every 10cm
  • Delivery on 5m Reel

ELECTRICAL CHARACTERISTICS
Power consumption / m 28.8 W
Power consumption / strip 144 W
Input voltage DC 24 V
Luminous efficiency 62.5 lm / W (min) (Warm white)
Energy efficiency label (EEL) A
Connection possibility 5-PIN wire, 20 cm
Dimmable Yes

ABSOLUTE MAXIMUM RATINGS
Working temperature -5˚C – +40˚C
IP rating IP-20

LIFESPAN
Rated lifetime 30,000 h
Lifetime indication L70 / B10

LIGHT TECHNICAL DATA
LED type SMD 5050
LED quantity / m 120
LED quantity/strip 600
LED pitch 16 mm
Beam angle 120˚
Colour designation Warm white 3000K
Colour temperature CCT 2800K – 3150K
Wave length (nm) R=620-630 , G=525-527.5 , B=465-470
Colour rendering index CRI Ra > 80 (Warm white)
Luminous flux 900 lm / m (typ) (Warm white)

GENERAL CHARACTERISTICS
Material Flexible PCB
Surface material N/A
Color White
Mounting Adhesive tape
LED rows 2
Channels 4

DIMENSIONS & WEIGHT
Length 5000 mm
Width 19 mm
Height 2 mm
Cutting possibility 100 mm (12 LEDs)
Unit packing 18



Instructions for mounting and safety
Don’t run the strip when it is still mounted on the reel. Please take care during installation for the correct polarity (V+, V-) and do use the right power supplies with the following safety specifications:

  • SELV (Safety Extra Low Voltage), overload protection and short circuit protection.
  • You can cut the LED strip with a cutter at the marked cutting points on the strip.
  • Mounting on an aluminium profile is recommended in order to optimize the heat dissipation.
  • Be careful when you install the LED strip on conducting surfaces because the solder contact can cause a short circuit.
  • Avoid buckling the strip because the PCB board can be damaged.


LEDTAP102 Datasheet.pdf    2.6 MB
