Categories: , , SKU: PULLUX009

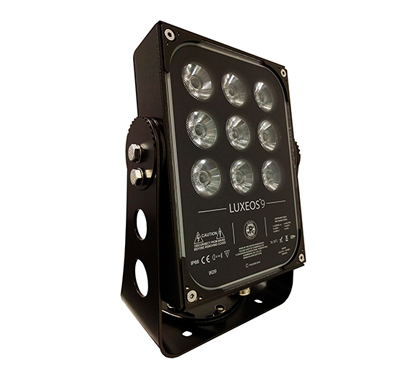

PULSAR’s Luxeos9 is a high performance LED floodlight exceeding 2,500+ Lumens with Red, Green, Blue and White (CRI90+) LEDs.

DISCONTINUED – Please call your nearest office for more information or a recommended replacement product.



Vivid Colour 2,500+lm with Red, Green, Blue and White – 90+CRI. Vibrant White 3,500+lm with 1700K to 5700K Variable CCT. Waterproof and weatherproof to IP66 with corrosion resistant coating and an IK09 rating. Toughened glass & marine grade fasteners all as standard. Convection cooled for completely silent operation, with intelligent thermal management and advanced circuit protection.

Customisation available including RAL paint finishes and bespoke mounting options to suit your application.
-Latest Quad core LED technology, combined internally at source using the latest advanced optics producing perfect colour mixing.

-Exceptional colour output and extensive customisation options the Luxeos is well equipped to suit any application.

-9 clusters of controllable Red, Green, Royal Blue and White giving a range of colours greater than the human eye can distinguish.

-Continuous, smooth current through the LEDs giving flicker-free, soothing light.

-100,000+ hours of LED, component and driver life.

-Waterproof to IP66 so suitable for both indoor and outdoor use.

-A range of interchangeable Holographic Beam Shapers (HBS) allows for different beam angles in any application.

-DMX / RDM Control with 8 bit with inter-bit smoothing or 16 bit.


As Standard:

  • 2,500+ Lumens
  • 120-277V
  • 60W
  • DMX / RDM Control
  • IP66 + IK09

Beam Angle Options: (in degrees) Custom beam angles available to suit your needs exactly.

Circular Beams:

10 (Native), 15, 20, 30, 40, 60, 80

Elliptical Beams:

10 x 30, 10 x 40, 15 x 40, 10 x 20, 10 x 50
10 x 60, 35 x 75, 90 x 25

Pulsar-Luxeos9-Vivid-Colour.pdf    771.16 KB
