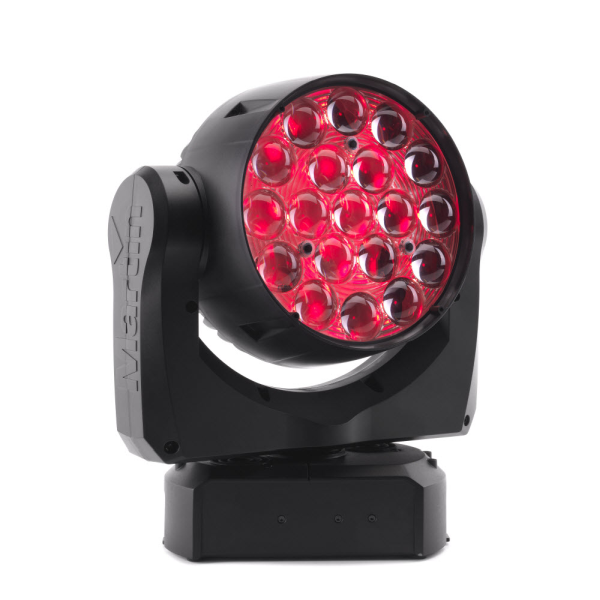

MAC AURA XB

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™.



Description

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior colour mixing system and an optimized lens design for tighter beams and more even washes. Martin’s unique and patented Eye-candy Aura Effect™ is also part of the package.

  • Super bright single lens wash with fully premixed colour
  • Compact design and low weight
  • High efficiency, low power consumption, long service life



Features

  • Super-bright single-lens wash with fully premixed colour
  • Broad colour palette, RGBW colour mixing
  • Eye-candy Aura Effect™
  • Uniform shades
  • Built-in FX engine
  • 10 to 60° uniform zoom
  • 6000 Lumens output
  • Rapid movement
  • Compact, low weight design (6.5 kg)
  • High efficiency, low power consumption, long lifetime

Specifications
Physical
Height: 360 mm (14.2 in.), head straight up
Length: 302 mm (11.9 in.) across yoke
Weight: 6.5 kg (14.4 lbs.) without accessories
Width: 302 mm (11.9 in.) across yoke

Dynamic Effects
Beam colour mixing: RGBW
Aura (secondary lens array illumination) colour mixing: RGB
Beam colour temperature control: CTO, variable 10,000 – 2500 K
Beam and aura electronic ‘colour wheel’ effect: 33 LEE-referenced colours plus white, variable-speed colour-wheel rotation effect and random colour
Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects
Pre-programmed effects: Range of synchronized and independent beam and aura FX, different FX can be combined
Electronic dimming: Independent beam and aura, four dimming curve options
Pan: 540°
Tilt: 232°
Pan and tilt speed: Adjustable via onboard control panel and DMX

Control and Programming
Control systems: DMX, RDM
Control options: Independent or synchronized Beam and Aura control
Control resolution: 8-bit, with 16-bit control of pan & tilt
Setting and addressing: Control panel with backlit graphic display
DMX channels: 14/25
Firmware update: Via DMX with Martin™ USB Duo DMX Interface Box
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: RS-485

Optics and Photometric Data
Light Source: 19x 15W RGBW LED Array System
LED Refresh Rate: Beam 1200 Hz, Aura 4395 Hz
Minimum LED Lifetime: 50,000 hours (to >70% luminous output)*
Total luminous output (wide, one-tenth peak): 6000 lumens
Total luminous output (narrow, one-tenth peak): 4300 lumens
Video compatibility: Designed for use with HD/high-speed video cameras
*Figure obtained under manufacturer´s test conditions

Construction
Housing: High-impact thermoplastic, flame-retardant to UL 94 5VA
Colour: Black
Protection rating: IP20

Installation
Mounting points: M12 hole for rigging clamp, attachment points for surface-mounting bracket
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 200 mm (8.0 in.)
Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.)

Connections
AC Power: Neutrik PowerCON TRUE1 NAC3PX dual socket
AC power input socket: Accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connector
AC power thru socket: Accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connector
DMX and RDM data in/out: 5-pin locking XLR

Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current: 10.7 A
Maximum total power consumption: 400 W
Typical power consumption, all effects static, zero light output: <25 W

Thermal
Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Total heat dissipation (calculated, +/- 10%): 1230 BTU/hr.

Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class A
Canadian safety: CSA E598-2-17 (CSA E60598-1)
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241

Included Items
User manual: P/N 35000254
M12 bolt suitable for use with Martin rigging clamps
Note that power cables and connectors are not included and must be ordered separately

Accessories
Power cables:
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power Throughput Cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power Throughput Cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power Throughput Cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796

Power connectors:
Cable connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
Cable Connector, Neutrik PowerCON TRUE1 NAC3MX-W (male): P/N 91611788

Installation hardware:
Quick surface mounting bracket for MAC Aura XB, set of 5: P/N 91606018
G-clamp: P/N 91602003
Half-coupler (tube) clamp: P/N 91602005
Quick trigger clamp: P/N 91602007

Flightcase: 6-unit flightcase for MAC Aura™: P/N 91515020
Optical Accessories: MAC Aura / Aura XB Soft Lens Kit: P/N 91611730
