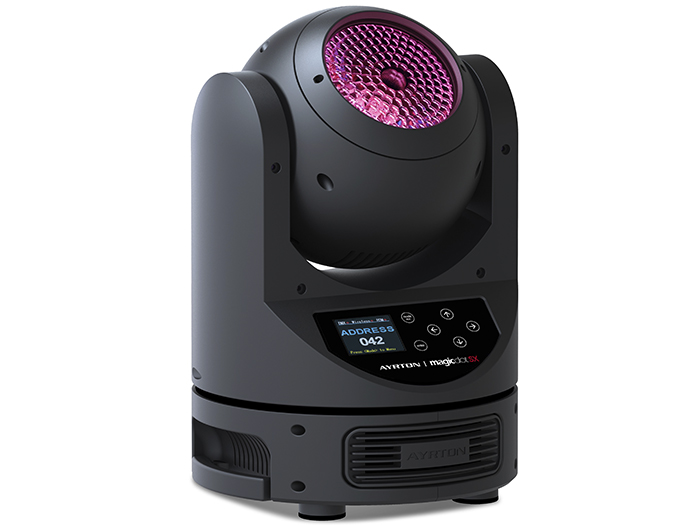

MagicDot-SX

MAGICDOT™SX is an optically evolved, multipurpose, variant of MAGICDOT™R, with the same form factor, dimensions and features, including ultra-rapid beam movement and continuous, unlimited, rotation on pan and tilt.

SEND ENQUIRY

Description

The compact footprint allows multiple MAGICDOT™SX luminaires to be installed with a minimum amount of space between them (patent pending).
This new luminaire replaces the 4.5° fixed-focus optics with a revolutionary new 8:1 optical zoom that has a fixed transmitting lens, no visible moving parts and an incredible zoom range of 5° to 40° (patent pending).
The short stroke of the zoom system permits MAGICDOT™SX to switch from intense Beam mode to sweeping Wash mode virtually instantaneously.

MAGICDOT™SX delivers up to 75% optical efficiency in a tight beam, when the 94 mm-diameter collimator is positioned close to the transmitting lens. This ensures great compatibility and graphical interactivity with MAGICDOT™R units. In addition to DMX-RDM control, MAGICDOT™SX can be controlled via wireless CRMX TiMo RDM from LumenRadio™. MAGICDOT™SX is a versatile tool that meets a vast array of needs both in stage and architectural applications.

TECHNICAL SPECIFICATIONS

OPTICS
• Motorized linear zoom system, ratio 8:1
• Beam aperture: 5° to 40°
• High-efficiency optical system

LIGHT SOURCE
• 1 multi-chip High-Power LED source
• Light output: up to 1,700 lumen
• Luminous intensity: 136,000 cd
• Rated sources life: up to 50,000 hours
• Flicker free sources management, suitable for TV applications and all video recorded events

MOVEMENT
• Continuous pan and tilt rotation
• Extremely accurate positioning
• Moving-head operated via either 8 or 16 bit resolution
• High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
• Pan and tilt automatic repositioning

COLOURS
• Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
• Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
• 4.29 billion colours (8 bit resolution)
• Virtual colour wheel, including most usuals white colour temperature presets
• Dynamic colour macro effect with variable speed

DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FACILITIES
• Local DMX addressing of the luminaire and its optional parameters through its built-in LCD panel control
• Remote DMX addressing of the luminaire and its optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

HARDWARE FACILITIES
• Graphic LCD display for addressing and special functions settings, with flip function
• 6 menu buttons to set the functions
• Over temperature protection
• Integrated LumenRadio’s wireless CRMX RDM receiver
• XLR 5 pin male and female connectors for DMX connection
• PowerCON TRUE1 male and female connectors for power connection

CONTROL
• DMX 512 protocol, through DMX cable or wireless system
• DMX-RDM compatible
• Stand-alone mode and Master/Slave modes
• Local control panel, with LCD display
• Choice of 2 DMX modes (from 16 to 19 DMX)

POWER SUPPLY
• Electronic supply with active PFC
• 110 to 240 Volts – 50/60Hz
• Power 130 Watt max

COOLING SYSTEM
• Advanced cooling system based on heatpipe technology
• Self adjusting variable speed fans for quiet operation (Auto mode)
• Selectable auto, stage & studio ventilation modes
• Safety protection against temperatures excesses

HOUSING
• Moving-head skeleton made of aluminium and steel metal plates
• Heatsinks in aluminium, satin finish
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two sides handles for transportation
• IP20 protection rating
• Exterior finish: black (Carbon)

INSTALLATION
• Fastening brackets system: one Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: two ¼ turn locking fittings allowing installation of Omega bracket on luminaire
• Safety cable attachment point

OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45°C (113°F)
• Minimum permitted ambient temperature (Ta min): -10°C (14°F)
• Minimum usage distance: 1.0 m (3.28 ft)

COMPLIANCE
EU (EMC)
• EN 55015 (2006) – EN 55015 A2 (2009)
• EN 61547 (2009) – EN 61000-3-2 (2006)
• EN 61000-3-2 A2 (2009) – EN 61000-3-3 (2008)
EU (LVD)
• EN 60598-1 (2008) – EN 60598-2-17 (1989)
• EN 60598-2-17 A2 (1991)

SIZE
• Product: 210 x 318 x 210 mm (l x h x d)
• Flight-case foam: 251 x 330 x 251 mm (l x h x d)

WEIGHT
• Product: 5.7 KG

PRODUCT CODES
• 015160: MAGICDOT-SX CREATIVE SOLUTION

LEGAL
• MAGICDOT is AYRTON registered Trademark
• MAGICDOT-SX is a patented model
