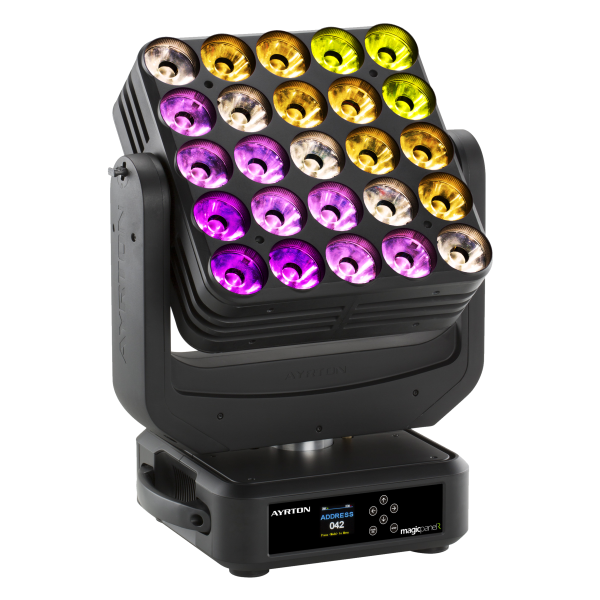

MagicPanel R

Categories: , , SKU: AYRMAG310

MAGICPANEL™R represents a variant of the world famous MAGICPANEL™602, which has enjoyed huge international success since its launch.



Description

The integration of the features specific to the RADICAL™ range, in conjunction with continuous double rotation on two axes and a 5 x 5 matrix of individually-controlled LED sources around a central point, once again allow AYRTON™ to push the boundaries of imagination. Fitted with twenty-five 15 Watt LED RGBW sources paired with 67 mm collimated optics, each MAGICPANEL™R offers an overall flux of 10,625 lumen and a centre beam luminous intensity of 1,115,500 candela from a maximum power consumption of 450 Watt. This translates into a visual perception that is twice as high as the 45 mm optics for 30% less power consumption.

User Manual.pdf 1.57 MB
Datasheet.pdf 4.26 MB
