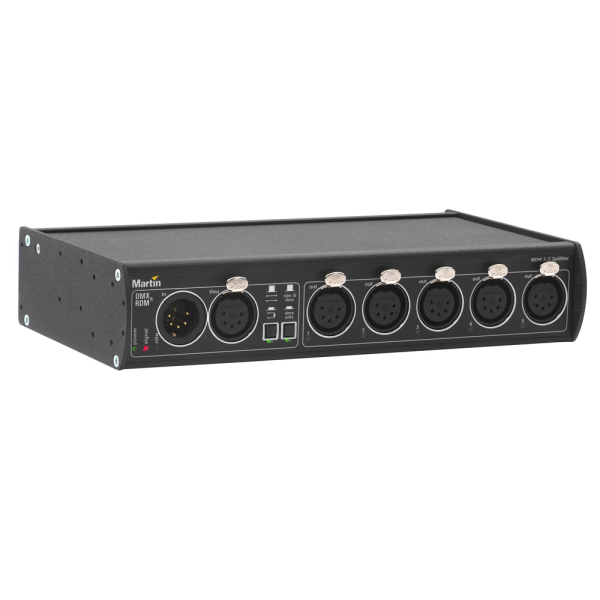

Martin RDM 5.5 Splitter

Categories: , , SKU: MARCON162 Tag:

The Martin DMX 5.3 and RDM 5.5 Splitters are the most economical devices available to ensure proper data transmission levels and protect controllers and DMX/RDM devices.

OUT OF STOCK – Please call your nearest office for more information or a recommended replacement product.


Both Splitters are useful in maintaining proper data levels
over long runs or several runs of DMX signal with the RDM
5.5 Splitter also capable of effectively handling RDM data.
Both the DMX 5.3 Splitter and RDM 5.5 Splitter help to
rectify disruptions in the DMX signal caused by bad cables
or bad connections by splitting the DMX or DMX/RDM
data link into five separate branches while boosting the
weak DMX signal to its original output level before it becomes
too low to be read by DMX devices.
Through fully individual isolated input and 5 outputs, the
Martin Splitters will protect any DMX controller and DMX
fixture against voltage surge on the data line.

  • DMX Splitter / Booster
  • Opto-isolated DMX Output ports
  • DMX loop through port with built-in termination
  • 3-pin, 5-pin (RDM) XLR Input and Outputs
  • Optimized for Martin fixture firmware upload
  • Universal power supply
  • Rack, trus
