Martin RUSH CS Series

Categories: , , SKU: MARRUS300

The Martin RUSH CS Series is a colour LED cove lighting system designed to illuminate interior walls and other indoor spaces.



Description

These high output, cost effective lighting strips are a great fit for indoor lobbies, lounges or other spaces. The fixtures offer both basic and advanced control modes, allowing these venues the ultimate flexibility to establish the exact look they need without adding unneeded complexity to the lighting design, installation or operation. Designed to be easy to install and use, the RUSH CS Series is a perfect fit for a variety of applications.

Available in both wide and graze options in varying lengths, integrators can install up to 10 meters on a single Power Supply Unit (PSU). To power the units, the RUSH CS Series uses a hybrid power and data cable system that reduces wiring and installation costs by using a single cable for both power and data.

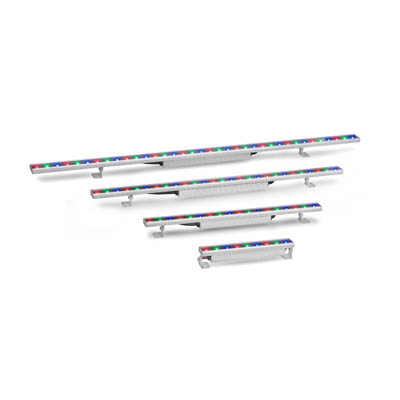

The series is available in a variety of sizes. The RUSH CS 300 Graze and 300 Wide are 303mm ( 11.9 in) in length. The RUSH CS 600 Graze and 600 Wide are 603mm ( 23.7 in) in length. The RUSH CS 900 Graze and 900 Wide are 903mm ( 35.6 in) in length. And the RUSH CS 1200 Graze is 1203mm ( 47.4 in) in length.

  • High-output indoor LED cove lighting fixture
  • Multiple control modes & pre-programmed CTC presets
  • Easy installation of up to 10m on a single PSU

Features

  • CREE XP-E2 R/G/B LED
  • 18 x 65° beam angle—Graze
  • 124° beam angle—Wide
  • Electronic dimming
  • CTC preset control channel
  • Easy mounting bracket system
  • Hybrid power & data in/out
  • DMX and RDM control

Product codes:

RUSH CS 300 Graze: MARRUS300

RUSH CS 300 Wide: MARRUS301

RUSH CS 600 Graze: MARRUS310

RUSH CS 600 Wide: MARRUS311

RUSH CS 900 Graze: MARRUS320

RUSH CS 900 Wide: MARRUS321

RUSH CS 1200 Graze: MARRUS330

RUSH CS 1200 Wide: MARRUS331

RUSH CS PSU: MARRUS350





CS300 Wide
Length: 303 mm (11.9 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 57 mm (2.2 in.)
Weight: 0.8 kg (1.8 lbs.)

CS300 Graze
Length: 303 mm (11.9 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 65 mm (2.6 in.)
Weight: 1 kg (2.2 lbs.)

CS600 Wide
Length: 603 mm (23.7 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 57 mm (2.2 in.)
Weight: 1.1 kg (2.4 lbs.)

CS600 Graze
Length: 603 mm (23.7 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 65 mm (2.6 in.)
Weight: 1.4 kg (3.1 lbs.)

CS900 Wide
Length: 903 mm (35.6 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 57 mm (2.2 in.)
Weight: 1.5 kg (3.3 lbs.)

CS900 Graze
Length: 903 mm (35.6 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 65 mm (2.6 in.)
Weight: 2 kg (4.4 lbs.)

CS1200 Wide
Length: 1203 mm (47.4 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 57 mm (2.2 in.)
Weight: 1.8 kg (4.0 lbs.)

CS1200 Graze
Length: 1203 mm (47.4 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 65 mm (2.6 in.)
Weight: 2.5 kg (5.5 lbs.)

Power Supply Unit
Length: 302 mm (11.9 in.)
Width: 195 mm (7.7 in.)
Height: 58 mm (2.3 in.)
Weight: 4.2 kg (9.3 lbs.)

Colour mixing: RGB
Colour temperature control: Off, 2800 K, 3200 K, 4000 K, 5600 K, 7200 K
Intensity: 0 – 100%
Control systems: DMX, RDM
DMX channels: 3, 6
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI E1.20
CS300/CS600/CS900/CS1200 Wide
Light source: Cree XP-E2 RGB LEDs
Beam angle: 124°
Minimum LED lifetime: 50 000 hours (to >70% luminous output)* CS300/CS600/CS900/CS1200 Graze
Light source: Cree XP-E2 RGB LEDs
Beam angle: 18° x 65°
Minimum LED lifetime: 50 000 hours (to >70% luminous output)* *Figure obtained under manufacturer’s test conditions
Housing: Aluminum
Finish: Clear anodized (standard) or white (optional)
Lens: Frosted polycarbonate
Ingress protection: IP20 RoHS compliant
Orientation: Any
Mounting: Direct with included brackets and user-supplied fasteners Minimum distance to illuminated surfaces: 0.2 m (8 in.)
Mains input: C13 IEC 60320
DMX in, out: 5-pin XLR
Fixture DC power and data in, thru: 6-pin custom connectors
AC power: 100 -240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
DC output voltage: 36 V
Maximum output current: 12 A
Maximum power consumption: 485 W
Mains inlet fuse: T 6.3 A, 250 V
Fixture power consumption: 12 W per foot +/- 1 W, PF 0.97 +/- 0.05 Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
Cooling: Convection
Maximum surface temperature: 55° C (131° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -30° C (-22° F)
