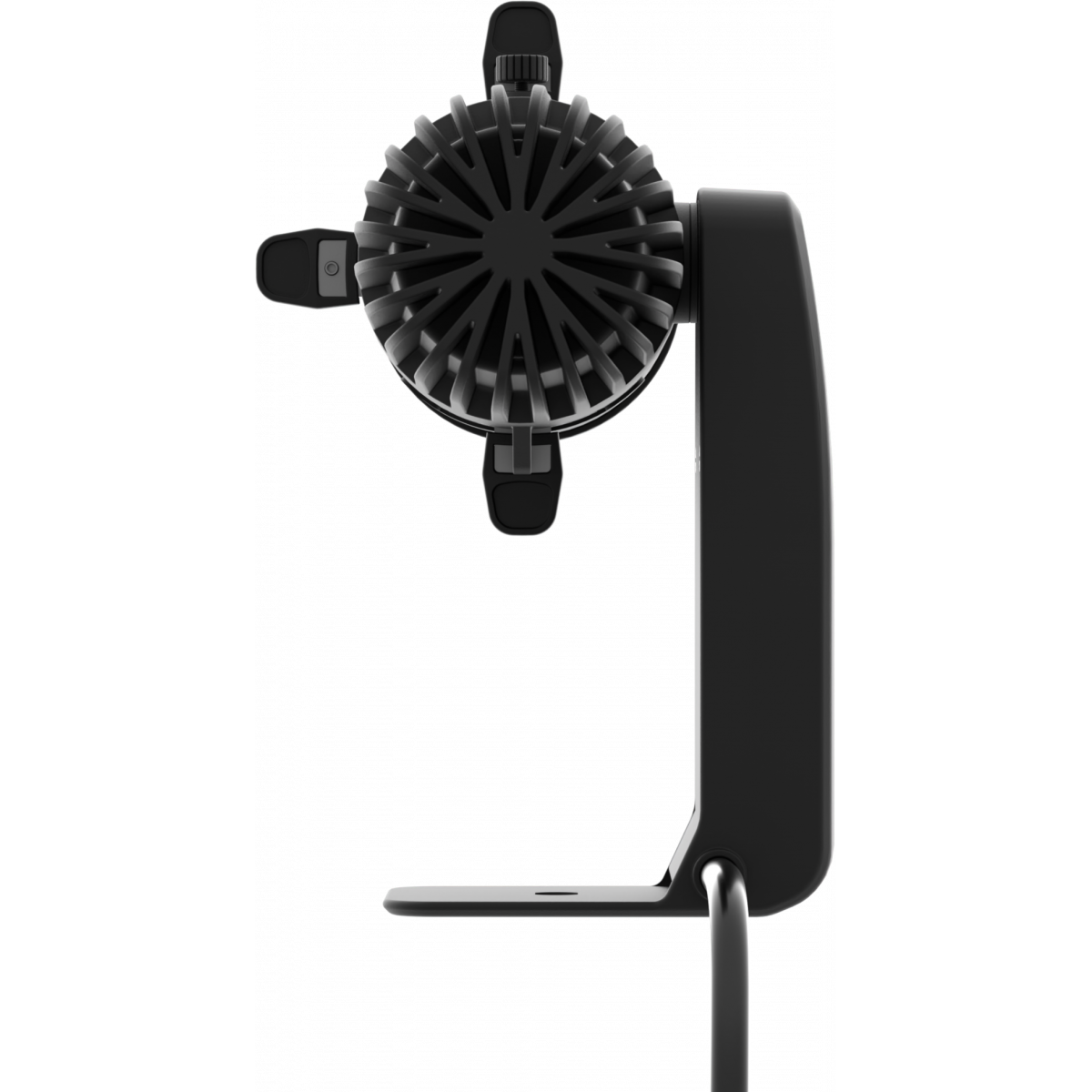

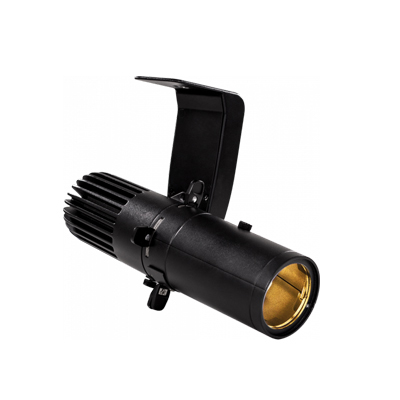

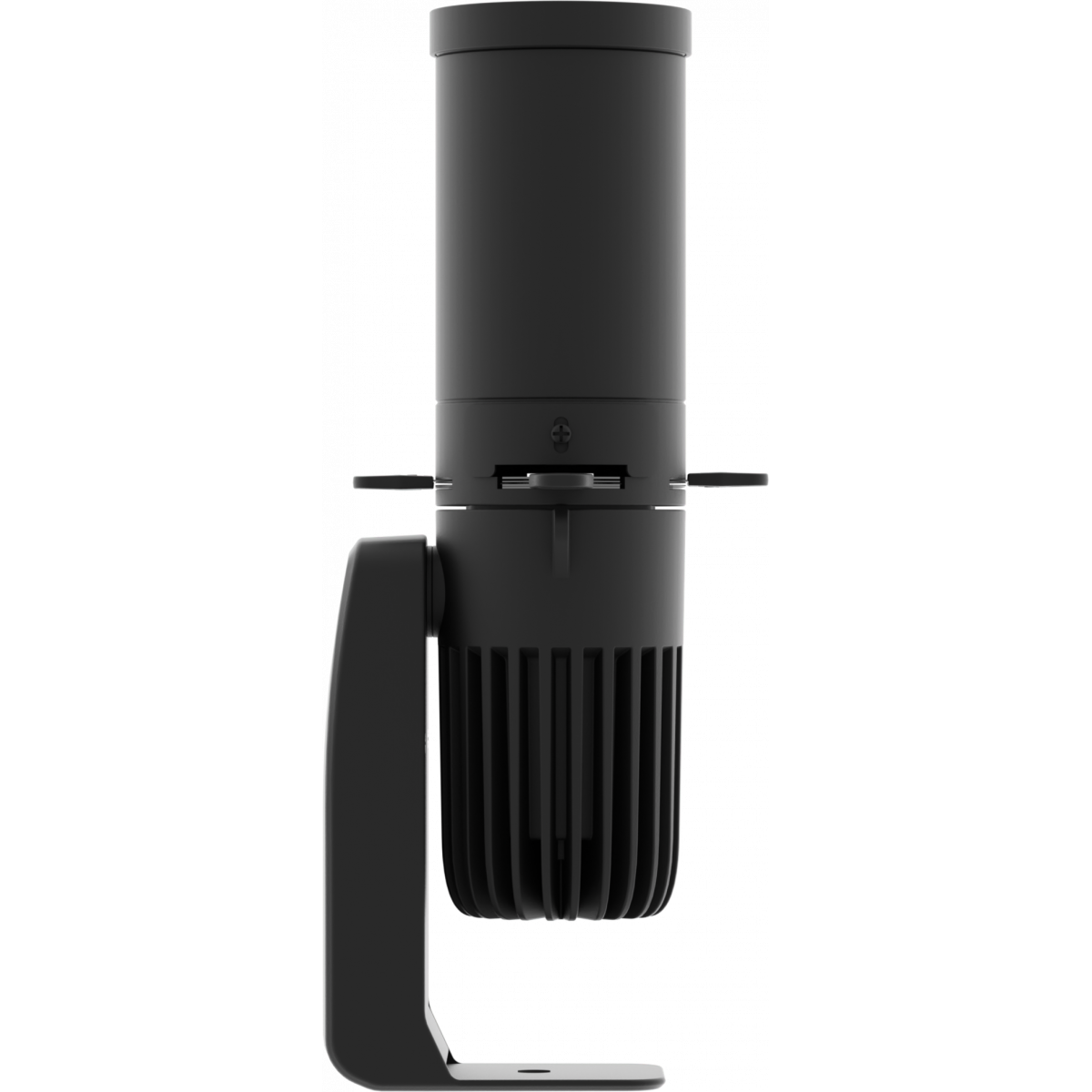

Mini Profile Black

Mini Profile Black is a new concept of mini LED ellipsoidal. Showcasing a stylish design, ease of use, precise optics, sharp image projection and bright even projection all in a compact housing that is just a quarter of the size of traditional ellipsoidals.

Description

Mini Profile Black is designed for applications in commercial installations, museums, restaurant, churches, educational theatres, and any other installation where size is an important factor. The LED Mini Eclipse performs even field projection, high CRI at any level of brightness and linear dimmer over the entire ramp.

Features include:

Bright, Compact LED Ellipsoidal with sharp optics.
High CRI LED sources.
19°, 26°, 36° and 50° lens options.

LIGHT SOURCE

Source: 28W CREE LED
CT: TU 3100 K
CRI: TU 92
Luminous flux: TU 612 lm
Luminous flux: (TU) (19°) 563 lm – (26°) 554 lm – (36°) 582 lm – (50°) 552lm @full
Source life expectancy: >70.000 h

OPTICS

Beam angle: optional 19° / 26°/ 36° / 50°
Lens type: high-quality glass lens optics

DYNAMIC EFFECTS

Fixed gobos: Gobo Holder Included in optics
Gobo size: E size, gobo Ø 37.3 mm – img Ø 24 mm – thickness 1.1 mm
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of dimmer and strobe

BODY

Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black

ELECTRONICS

Dimmer: linear 0~100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1-25 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
Selectable PWM: 600~25K Hz

ELECTRICAL

Power supply: 100-240V – 50/60Hz
Power consumption (at 230V): 22W

PHYSICAL

Cooling: natural cooling of the peculiar chassis and to absence of fans
Suspension and fixing: hanging bracket suitable for safe hanging and positioning
Power connection: moulded IP power IN connector
IP rating: 20
Dimensions (WxHxD): 112x176x226mm
Weight: 1kg

MUSGAL210 MiniProfile 3100K datasheet.pdf    347.7 KB
