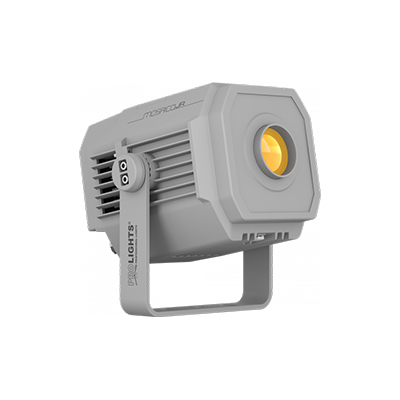

Mosaico Jr

Categories: , , , , , SKU: MUSMOS100 Tags:

70W outdoor zoomable LED image projector

Enquiry about Mosaico Jr

Enter the security code shown above

Description

Mosaico Jr is a compact IP rated LED gobo projector designed for the projection of logos, images and textures onto commercial buildings, hotels and city facades. The small size allows for mounting anywhere without any impact on the surrounding environment or architecture. The onboard zoom ranges from 14° to 44° allowing for an extensive user-flexibility, from projecting crisp and accurate logos to textured projections.



Features:

  • 70W White LED engine delivering 2’900 lumens
  • IP66 and equipped with 14° – 44° linear zoom system to meet any install
  • On-board rotating gobo wheel, colour wheel and wireless DMX
LIGHT SOURCE
  • Source: 70W white LED
  • CCT: 7.900K
  • Luminous flux: (14°) 2’861 lm – (44°) 2’681lm
  • Lux: (14°) 6’070 lux – (44°) 848lx @3 m
  • Lux: (14°) 2’250 lux – (44°) 315lx @5 m
  • Source life expectancy: > 50.000 h

OPTICS

  • Zoom: 14° – 44° motorised linear zoom
  • Lens diameter: 63mm / 2.48”
  • Lens type: high-quality glass lens optics
  • Focus: motorised

COLOUR SYSTEM

  • Colour wheel: 7 dichroic filters + open

DYNAMIC EFFECTS

  • Rotating gobos: 7 rotating gobos + open, indexing
  • Gobo size: gobo Ø 15,8 mm – img Ø 12,7 mm – 1,10 mm
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: record scenes and create chases and shows throughout these scenes

BODY

  • Hardware on-board: on board mechanics for rigging to the ceiling
  • Body: aluminium die-casting
  • Body colour: cool gray 6C

CONTROL

  • Protocols: DMX512, RDM, W-DMX
  • DMX channels: 8 / 14channel
  • W-DMX: included, wireless solution receiver
  • RDM: RDM ready for fixture remote monitor and settings
  • Display: black OLED high-resolution display
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
  • Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 different dimming curves available
  • Strobe / shutter: 1 – 21 Hz, electronic
  • Battery backup: battery backup for user operation without connecting to the main power
  • Operating temperature: -20° ~ +45°
  • Flicker: flicker free frequency with adjustable PWM

ELECTRICAL

  • Power supply: 100-240 V – 50/60 Hz
  • Power consumption (at 230 V): (static) 86,5 W – (dynamic) 91,3W
  • Power consumption (at 120 V): (static) 85 W – (dynamic) 84,4W
  • Output (at 230 V): 23 units on a single power line
  • Output (at 120 V): 13 units on a single power line
  • Power factor: pF 0,98 @230 V – pF 0,99 @120 V

PHYSICAL

  • Cooling: forced air with IP low noise fan
  • Suspension and fixing: hanging bracket suitable for safe hanging and positioning
  • Adaptors: XLR and Shuko 16A adaptors included
  • Signal connection: moulded IP signal IN/OUT connectors
  • Data connection: W-DMX receiver
  • Power connection: moulded IP power IN/OUT connectors
  • IP rating: 66 for outdoor installations
  • Dimensions (WxHxD): 247x258x244mm / 9.72”x10.16”x9.61”
  • Weight: 10kg / 22.05lbs


MOSAICOJR_manual.pdf    8.46 MB
MUSMOS100 Mosaico JR datasheet.pdf    427.97 KB
