Mosaico XL

Categories: , , , , , SKU: MUSMOS120 Tags:

540W IP66 zoomable LED image projector with CMY and framing shutters

Enquiry about Mosaico XL

Enter the security code shown above

Description

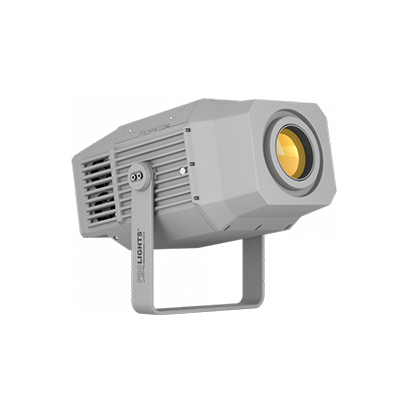

Mosaico XL is an extremely powerful long-range outdoor LED fixture for the projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL offers a phenomenal output of 17’000 lumens and an extensive set of features including CMY colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 5° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations.

Features:

  • 540W White LED engine with 6.000 K CT delivering 17’000 lumens output
  • IP66 and equipped with 5°- 50° linear zoom system to complete any installation
  • Extensive feature set including CMY and linear CTO, shutter frame and animation wheel

LIGHT SOURCE

  • Source: 540W high-power white LED
  • CCT: 6.000K
  • Luminous flux: (5°) 8’361 lm – (50°) 17’042lm
  • Lux: (5°) 113’888 lx – (50°) 3’640lx @3 m
  • Lux: (5°) 41’000 lx – (50°) 1’310lx @5 m
  • Source life expectancy: > 50.000 h
  • Other: TM-30-15RF/RG: 95/65 – TLCI: (5°) 44,2 – (50°) 42,8

OPTICS

  • Zoom: 5° – 50° motorised linear zoom
  • Lens diameter: 119mm / 4.69”
  • Lens type: high-quality glass lens optics
  • Focus: motorised

COLOUR SYSTEM

  • Colour mixing: linear CMY
  • CTC: linear 2.600 K – 6.000 K
  • Colour wheel: 6 dichroic filters + open

DYNAMIC EFFECTS

  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: gobo Ø 26,9 mm – img Ø 20,5 mm – 1,1 mm
  • Circular prism: 4f with bi-directional rotation, indexing
  • Frost: dual frost filter system, soft-edge linear frost filter, hard edge linear frost filter
  • Iris: 5 ~ 100% motorised linear iris
  • Special features: record scenes and create chases and shows throughout these scenes

BODY

  • Body: aluminium die-casting
  • Body colour: cool gray 6C

CONTROL

  • Protocols: DMX512, RDM, W-DMX
  • DMX channels: 28 / 30 / 35channel
  • W-DMX: included, wireless solution receiver
  • RDM: RDM ready for fixture remote monitor and settings
  • Display: black OLED touch display
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
  • Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 different dimming curves available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Battery backup: battery backup for user operation without connecting to the main power
  • Operating temperature: -20° ~ +45°
  • Flicker: flicker free operation

ELECTRICAL

  • Power supply: 100-240 V – 50/60 Hz
  • Power consumption (at 230 V): (static) 571 W – (dynamic) 587W
  • Power consumption (at 120 V): (static): 592 W – (dynamic) 607W
  • Output (at 230 V): 3 units on a single power line
  • Output (at 120 V): 1 units on a single power line
  • Power factor: pF 0,97 @230 V- pF 0,99 @120 V

PHYSICAL

  • Cooling: forced air with IP low noise fan
  • Suspension and fixing: hanging bracket suitable for safe hanging and positioning
  • Adaptors: XLR and Shuko 16A adaptors included
  • Signal connection: moulded IP signal IN/OUT connectors
  • Data connection: W-DMX receiver
  • Power connection: moulded IP power IN/OUT connectors
  • IP rating: 66 for outdoor installations
  • Dimensions (WxHxD): 403x462x565mm / 15.87”x18.19”x22.24”
  • Weight: 37kg / 81.57lbs


MOSAICOXL_manual.pdf    7.46 MB
MUSMOS120 mosaico XL datasheet.pdf    556.25 KB

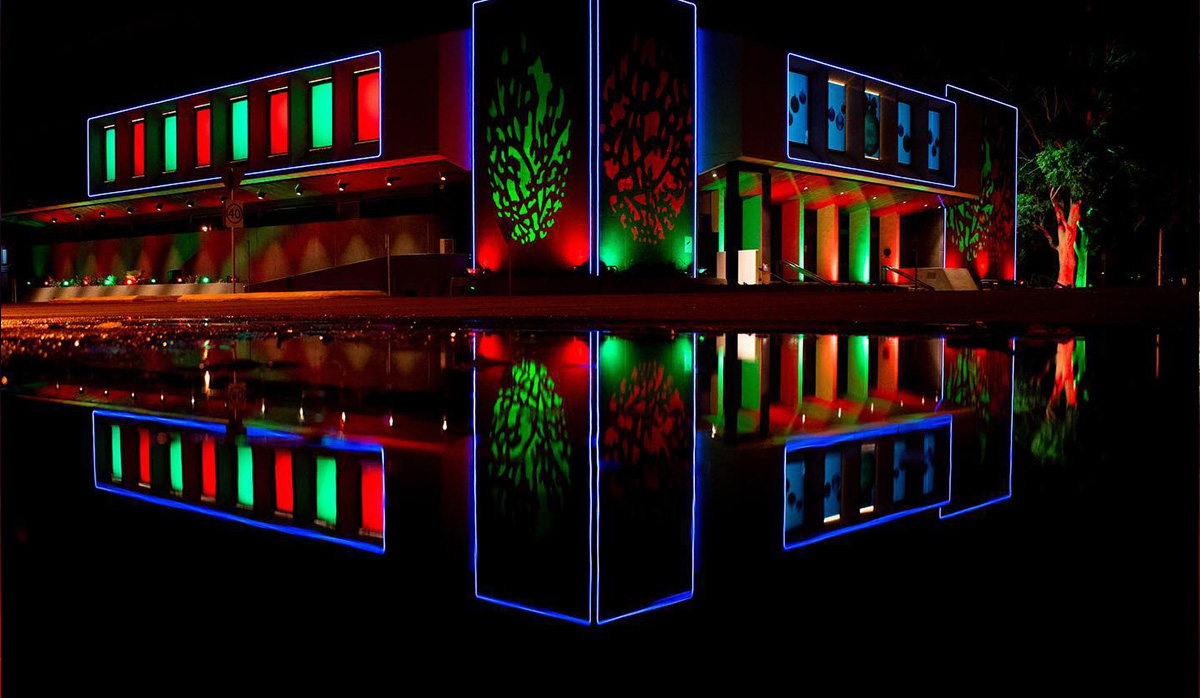

Broken Hill
