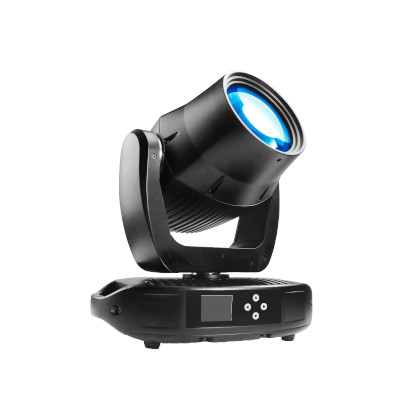

Neptune 200 Beam IP65

Categories: , , , , , , SKU: LEDMOV620 Tags:

NEPTUNE 200 BEAM is an ultra-compact IP beam moving head, which delivers unbelievable strong and powerful output, Provide a solid fat, sharp and clean beam at 1.7°

Enquiry about Neptune 200 Beam IP65

Enter the security code shown above

Description

It has a super-fast and precise pan and tilt movements, professional beam effects, fast multi-gobo exchanging and clean projection. It is an ideal product for outdoor concerts/events, theme and amusement parks and the rental touring market.

The Neptune 200 Beam IP65 features:

  • Rotating gobo: 8 gobos + white, gobo flow effect, gobo shake, bi-directional rotation
  • Colours: one colour wheel (9 dichroic filters + white, rainbow flow effect )
  • Prism: 8 Facet Linear Prism and 16 Facet Standard Prism – Rotating and Indexing
  • Focus: Motorized linear focus



Optical System
Light Source 100W White LED module
Angle 1.7°
Electric Specs
Voltage 100-240V AC, 50/60 Hz
Max Power 180W
Driver Current 3.8A
Power Connection Seetronic PowerKon (TRUE1 Compatible)
Data connection 3 + 5 Pin XLR, RJ45 (Art-Net)
Control System
Pan/tilt rotation 540°/ 270° 8-16bit
Dimmer 0-100% 16Bit
Cooling Ultra-Quiet Fan Cooling
Control methods DMX512, RDM, ARTNET, SACN, W-DMX
Display OLED with onboard menu
Dimming 0-100% 16Bit
Con Personality SSP/21CHS, TOUR/26CHS, TR16/33CHS, CMY/27CHS, HSIC 23CHS, PIXEL/48CHS
Special Pan/Tilt movement blackout, user-selectable pan/tilt ranges, gravitation sensor for auto screen positioning
Appearance
Size 410X280X483mm
Weight 22KG
Casing Flame-retardant plastic (VO)
Colour Black
Effect System
Rotating gobo One piece of 8F prisms with bi-directional rotation,speed adjustable
Colours: one colour wheel (9 dichroic filters + white, rainbow flow effect
Focus: Motorized linear focus
Work Environment
Ambient Temp  0-45°
IP Rated IP65


LEDMOV620 - Neptune 200 Beam IP65 datasheet.pdf    1.45 MB
LEDMOV620 - Neptune 200 Beam IP65 MA Fixture Files.zip
LEDMOV620 - Neptune 200 Beam IP65 Manual.pdf    8.54 MB
silver star@pluto 200 spot.xml    215.26 KB
Silver_Star@Pluto_200_Spot@1.00.gdtf    168.76 KB

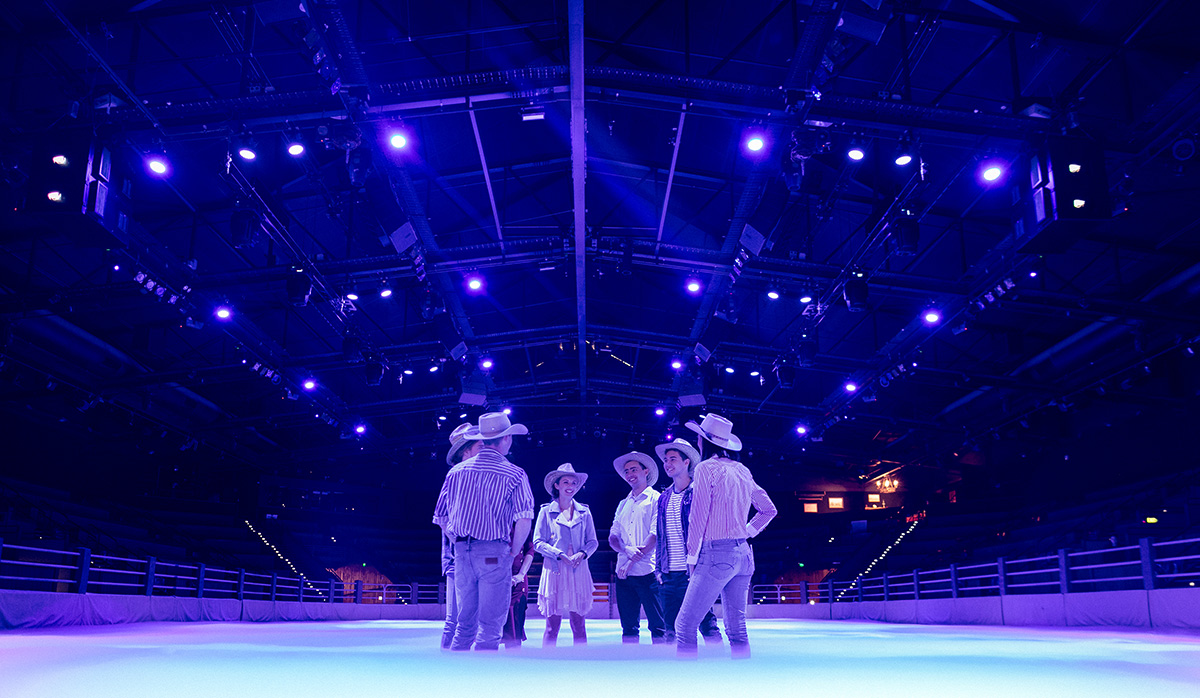

ShowPRO in the Outback
