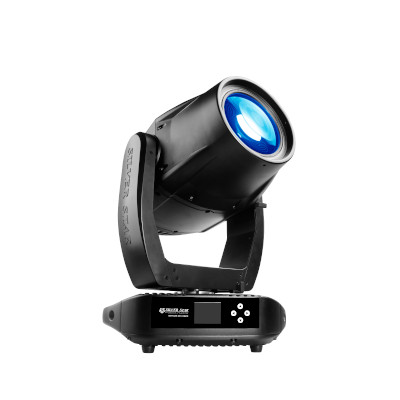

Neptune 400 Hybrid IP65

NEPTUNE 400 HYBRID is a powerful IP65 rated hybrid moving head, with high-efficiency optics, wide zoom angle from 3-30° that provides a strong beam and spot effects.



Description

It has fast and silent pan and tilt movements, full CMY colour mixing engine, a professional high-quality colour wheel, extremely clean static and rotating gobo wheel projection and five facet prism effect. Perfect product for outdoor concerts/events, commercial installations, theme and amusement parks and the rental touring market.



The Neptune 400 Hybrid Features:

  • Rotating Gobo: 8 Gobos + White, Gobo flow effect, Gobo shake and bi-directional rotation
  •  Static Gobo: 12 Gobos + White, Gobo flow effect, Gobo shake
  •  Colours: CMY engine + Colour wheel ( 8 dichroic filters + white, rainbow flow effect)
  •  Prism: One piece of 5F prism with bi-directional rotation, speed adjustable.
  •  Focus: Motorized linear focus
  •  Frost: 1 frost filter



Optical System
Light Source 300W (RGBW)
Beam Angle 3°-30°
Electric Specs
Voltage 100-240V AC, 50/60 Hz
Max Power 400W
Driver Current 5A
Power Connection Seetronic PowerKon ( TRUE1 compatible)
Data Connection 3 + 5 pin XLR, RJ45 (Artnet)
Control System
Pan/tilt rotation 540°/ 270° 8-16bit
Dimmer 0-100% 16Bit
Cooling Ultra- quiet fan cooling
Control methods DMX512, RDM, ARTNET, SACN, W-DMX
Display OLED with onboard menu.
Dimming 0-100% 16Bit
Con Personality BASIC/20CHS, STANDARD 24CHS, EXTEND 28CHS
Special Pan/Tilt movement blackout,User-selectable pan/tilt ranges
Appearance
Size 416X356X670mm
Weight 34KG
Casing Flame-retardant plastic (VO)
Colour Black
Work Environment
Ambient Temp  0-45°
IP Rated IP65
