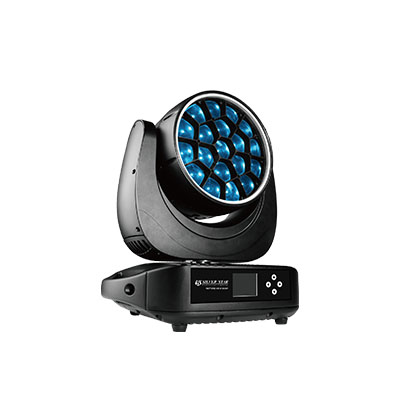

Neptune 400 wash IP65

Neptune 400 Wash is powered by the industry-standard 19 x 20w Osram RGBW LED source. Featuring the added visual effect of the outer LED pixel ring all in an IP 65 rated moving head fixture.





Description

The Neptune 400 Wash IP65 features:

  • Super tight beams to soft edge wash thanks to the 6 to 45 degree zoom range
  • Flexible control modes available from simple wash to macro controlled pixels or 89 channel mode which allows individual pixel control for the creative mind.
  • Improvements in connectivity across the range now includes S-ACN, RDM, Ethernet to DMX, W-DMX and on-board Webserver.

Optical System
Light Source 19x20W(RGBW)
Beam Angle 6°-45°
Electric Specs
Voltage 100-240V AC, 50/60 Hz
Max Power 400W
Driver Current 1.2A
Power Connection Seetronic PowerKon (TRUE1 Compatible)
Data connection 3 + 5 pin XLR, RJ45 (Artnet)
Control System
Pan/tilt rotation 540°/ 220° 8-16bit
Dimmer 0-100% 16Bit
Cooling Ultra- quiet fan cooling
Control methods DMX512, RDM, ARTNET, SACN, W-DMX
Display OLED with onboard menu.
Dimming 0-100% 16Bit
Con Personality SSP/14CHS, TOUR/18CHS, TR16/25CHS, CMY/19CHS, HSIC 16CHS, PIXEL/89CHS
Special Pan/Tilt movement blackout, user-selectable pan/tilt ranges, gravitation sensor for auto screen positioning
Appearance
Size  416X356X488mm
Weight 23KG
Casing Flame-retardant plastic (VO)
Colour Black
Work Environment
Ambient Temp 0-20°- 0-45°
IP Rated IP65
LEDMOV647 MA2 Fixture.zip 4.75 KB
LEDMOV647 - Neptune 400 Wash Datasheet.pdf 1.64 MB
LEDMOV647 - Neptune 400 Wash Manual.pdf 14.17 MB
