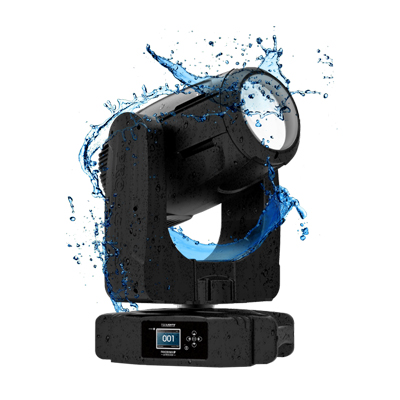

PANORAMA IP65 BEAM

PROLIGHTS PANORAMA IP65 AIRBEAM is a stunning IP65 moving beam light which delivers an unbelievable bright, fat 2° beam ideal for an outdoor searchlight and big air look.

SEND ENQUIRY

Description

Designed to make a statement, the PANORAMAIP AIRBEAM can truly make an event stand out or fill a large outdoor space with spectacular beams.

Features:

  • IP rated beam light  (IP65 for outdoor events)
  • Powerful 440W Osram HTI lamp combined with 167mm HD front lens for bright 2° beam
  • An extensive set of effects including linear CMY mixing, rotating gobo wheel, static gobo wheel, circular and linear prisms, linear frost and focus

LIGHT SOURCE

-Source: 440W Osram Sirius HRI

-CT: 7000K

-CRI: 80

-Luminous flux: 12457lm

-Lux: 1270259lux @5m

-Lux: 317565lux @10m

-Source life expectancy: 1.500 h

OPTICS

-Beam angle: 2°

-Lens diameter: 163.5mm

-Lens type: high-quality glass lens optics

-Focus: motorised with auto-focus

COLOUR SYSTEM

-Colour mixing: CMY colour system on 3 gradually fading colour wheels

-CTC: on wheel 2500K and 3200K + CTB

-Colour wheel: 13 dichroic filters + open on 3 independent colour wheels

DYNAMIC EFFECTS

-Rotating gobos: 9 rotating gobos + open, interchangeable, indexing

-Fixed gobos: 15 fixed gobos + open

-Gobo size: gobo Ø 15.9 mm – img vØ 9 mm – 1.1 mm

-FX generator: prisms overlap for spectacular aerial effects

-Circular prism: 16f with bi-directional rotation, indexing

-Linear prism: 6f with bi-directional rotation, indexing

-Frost: linear 0-100% frost filter

BODY

-Pan angle: 630° – 540°

-Tilt angle: 230°

-Pan/Tilt resolution: bit 16 bit

-Feedback: automatic repositioning after accidental movement

-Body: aluminium structure with hi-resistance polycarbonate cover

-Body colour: black

CONTROL

-Protocols: DMX512, RDM, Art-Net,W-DMX

-DMX channels: 19 / 22 / 28channel

-W-DMX: included, wireless solution receiver

-RDM: RDM ready for fixture remote monitor and settings

-Display: LCD high resolution colour display with autoflip

-Firmware upgrade: via menu with internal memory or via USB-DMX interface (UPBOX2) not included

-Hibernation: power safe mode when lost DMX

ELECTRONICS

-Dimmer: linear 0~100% mechanical dimmer

-Strobe / shutter: 1~28 flash(s), mechanical

-Operating temperature: -10° ~ +45°

ELECTRICAL

-Power supply: 100-240V – 50/60Hz

-Power consumption (at 230V): 522W

-Power consumption (at 120V): 522W

PHYSICAL

-Cooling: forced air with low noise fan

-Suspension and fixing: any position with quick-lock omega brackets

-Signal connection: Seetronic XLR 5p IN/OUT connectors

-Data connection: Art-Net RJ45 IN/OUT

-Power connection: Neutrik powerCON TRUE1 IN connector

-IP rating: 65 for outdoor events

-Dimensions (WxHxD): 441x746x312mm

-Weight: 39kg

2 PANORAMAIPAB_manuale.pdf 3.64 MB
3 MUSMOV100 Panorama IP65 Beam_datasheet.pdf 837.5 KB
