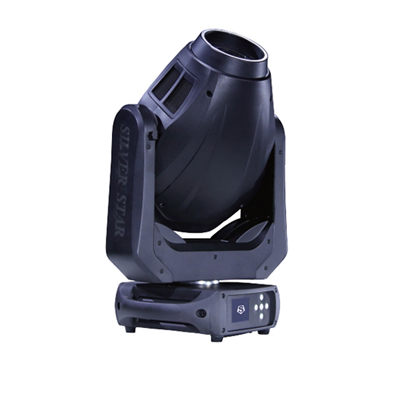

Pluto 200 moving head spot

The Pluto 200 is a compact 200W stage light that is fast and smooth.



The Pluto 200 moving head features:

  • 200W
  • 16kg
  • Rapid & silent Pan & tilt movement
  • Electronic zoom 10°-30° with refined 16bit dimming
  • (7+1) colour wheel
  • (10+1) fixed gobo wheel
  • (8+1) rotating glass gobo wheel
  • Frost
  • Power in: Artnet In/out
  • DMX 3pin/5pin In/out


Optical System
Lamp Source 200W module
Angle 10°-30°
Electric Specs
Voltage 100-240V AC, 50/60 Hz
Max Power 280W
Driver Current 3A
Power Connection Power In and out
Signal socket 3pin in and out, 5 pin in and out
Control System
Pan/tilt rotation 540°/ 270° 8-16bit
Dimmer 0-100% 16Bit
Cooling Forced Convection
Control DMX512, RDM
Display Onboard Control, custom Mode, 0-25Hz Strobe
Dimming 0-100% 16Bit
Con Personality STANDARD/20CHS, BASIC/17CHS
Special Pan/Tilt movement blackout, user-selectable pan/tilt ranges
Effect synthetic system
Rotating Gobo 7 Gobos+White, gobo-flow effect, gobo shake, bi-directional rotation (inner gobo size 16mm, outer gobo 23mm)
Static Gobo 10 Gobos+White, Gobo-flow effect, Gobo shake
Colours One colour wheel (7 dichroic filters+White Rainbow-flow effect)
Prism One piece of 3 facet prism with bi-directional rotation, adjustable speed
Iris 5-100% linearly adjustable with macro
Focus Motorized linear focus
Zoom Motorized linear Zoom
Frost 1 Frost filter
Size 359x249x555mm
Weight 16kg
Casing Flame-retardant plastic(V0)
Colour Black
Work Environment
Ambient Temp 0-45°
IP Rated IP20
