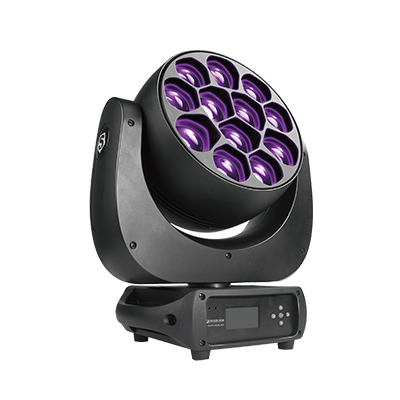

Pluto 4000 wash moving head CCS3

The Pluto 4000 wash moving head CCS3 has 12x40W RGBW LEDs which can be individually controlled for incredible effects and with the new colour consistency system match other fixtures with CCS in the Silverstar range.

Description

The Pluto 4000 wash moving head CCS3 features:

  • 12x40W (RGBW)
  • Colour consistency system
  • Pixel Control
  • Perfect colour mixing
  • 12.5kg
  • Rapid & silent Pan & tilt movement
  • Beam angle 4.5°-36°, Field angle 9°-52°
  • DMX 3pin/5pin In/out, RDM, ARTNET



Optical System
Lamp Source 12x40W (RGBW)
Angle 4.5°-36° (field angle 9°-52°)
Electric Specs
Voltage 100-240V AC, 50/60 Hz
Max Power 460W
Driver Current 2.5A
Power Connection Power In and out
Signal socket 3 pin in and out, 5 pin in and out, Art-net
Control System
Pan/tilt rotation 540°/ 270° 8-16bit
Dimmer 0-100% 16Bit
Cooling Forced Convection
Control DMX512, RDM, ARTNET
Display Onboard Control, custom Mode, 0-25Hz Strobe
Dimming 0-100% 16Bit
Con Personality HSIC (13CHS), PERSON1 (13CHS), PERSON2 (57CH), PIXEL(57CHS), CMY (15CHS)
Special Pan/Tilt movement blackout,User-selectable pan/tilt ranges
Appearance
Size 390x292x411mm
Weight 12.5KG
Casing Flame-retardant plastic (VO)
Colour Black
Work Environment
Ambient Temp 0-45°
IP Rated IP20


LEDMOV545 - Pluto 4000 Wash CCS3 Datasheet.pdf    1.06 MB
