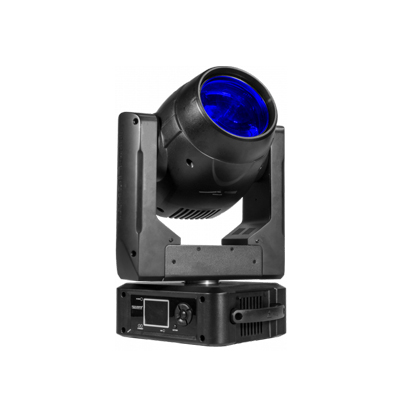

Ruby FCX

The PROLIGHTS RUBY FC Beam is a LED replacement for a discharge beam light. Maintaining the bright, tight,  2° beam and adding full colour mixing through the high-efficiency RGB source.



Description

RubyFCX is packed with all the features you would expect from a beam effect moving the light – such as gobos, 8 facet circular and 6 facet linear prism, frost and infinite pan and tilt rotation.

The RUBY FCX Features:
-50W RGB LED source incredibly bright and saturated colour
-Infinite pan & tilt rotation delivers new aerial effects
-Control through DMX, Art-Net and Wireless DMX



OPTICAL SYSTEM
Light Source: 50W RGB LED
Brightness: 51094lux @5m
Beam angle:
EFFECTS
Fixed gobos: 17 fixed gobos + open
Circular prism: 8f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
CONTROL SYSTEM
Pan/tilt rotation: 630°/265° (16 bit) with 360° infinite pan/tilt rotation
Control Methods: DMX512, RDM, Art-Net, W-DMX
Display: LCD high resolution colour display with autoflip
Control personality 18 / 20 / 22 / 23 channel
PHYSICAL
Size: 184x311x176mm
Weight: 12kg
Casing: Die Cast Aluminium
Colour: Black
ELECTRICAL
Voltage: 100-240V – 50/60Hz
Max Power 122W
Drive Current: 3A
ENVIRONMENT
Ambient Temp: 0-+45°
IP Rating: IP20
MUSMOV201 Ruby FCX datasheet.pdf 498.5 KB
Dot2_MA2_Fixture_Profile_Ruby_FCX.zip 17.59 KB
MUSMOV201 RUBYFCX manual.pdf 3.42 MB
