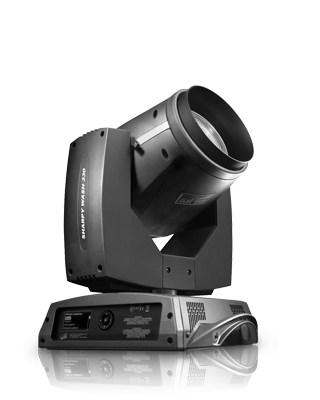

Sharpy Wash with lamp

Sharpy Wash is an extraordinarily compact, lightweight 330 W washlight, with the luminous efficiency, graphic and optical performance of a 1000W fixture.



Description

The Sharpy Wash is extremely silent and quick, and fitted with a complete CMY colour system, special colours, 6.5°-48° zoom, mechanical dimmer, beam shaping filter and motorized top-hat. At minimum beam angle, the Sharpy Wash produces a beam like its brother Sharpy: the two lights are designed to work perfectly together. It is an eco-friendly light, allowing considerable running and consumption cost savings.

The Sharpy wash features:

  • New 330W Lamp (8,000 K 1,500 h)
  • Equalling the light output of a 1,000 Watt luminaire
  • Small, lightweight and easily transported: only 18.5 Kg (40.8 lbs)
  • Adjustable beam angle from 6.5° to 48°
  • Motorised Top Hat (Clay Paky patented)
  • CMY Colour System + 11-colour wheel + open
  • Rotating beam shaper
  • High speed movements and effects
  • Frosted, smooth mechanical dimmer
  • High speed Stop/Strobo effect
  • Soft-edge Filter + heavy frost filter
  • New, high-performance electronics
  • Art-Net / RDM
  • Patented Italian design Eco-friendly: replaces far larger and more expensive washlights
  • Electronic ballast fitted as standard
  • Available in black, white, gold-plated and “mirror-finish” chrome plated versions





POWER SUPPLIES

115/230V 50/60 Hz

INPUT POWER

520VA at 230V 50Hz

LIGHT SOURCE

Discharge lamp with a short arc burner in a reflector system
– Output lamp power: 330W
– Color temperature: 8,000 K
– Nominal luminous flux: 16,000 lm
– Average rated life: 1,500 h

OPTICS

Front-Fresnel lens (patented spiral lens)
Zoom: from 6.5° to 48°

CMY Colour System
Colour wheel with 11 fixed colours + open

EFFECTS SECTION

Smooth and frosted mechanical dimmer
High speed Stop/Strobo effect
Soft-edge Filter
Heavy Frost Filter
Rotating and indexable beam shaper

CONTROL AND PROGRAMMING

Max 22 DMX 512 control channels
DMX protocol signal: USITT DMX 512
Art-Net / RDM
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input

BODY

Aluminium structure with die-cast plastic cover
Two side handles for transportation
Device locking PAN and TILT mechanisms for transportation and maintenance

MOVING BODY

Travel:PAN = 540°TILT = 240°
Resolution:PAN=2.11°; PAN FINE=0.008
TILT=0.98°; TILT FINE=0.0004°
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit

ELECTRONICS

Long life self-charging buffer battery
Function reset from the lighting desk
ON/OFF lamp control from the lighting desk
“AUTOTEST” function from menu
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware upgrade with no power
Firmware upload from another fixture

SAFETY DEVICES

Bipolar circuit breaker with thermal protection
Automatic break in power supply in case of overheating
Forced ventilation with axial fans

WORKING POSITION

Any working position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

In conformity with the European Directives:
• 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU – Electromagnetic Compatibility (EMC)
• 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)

WEIGHT

18.5 kg (40.8 lbs)
