SlimBar White

Categories: , , , SKU: STUBAR215

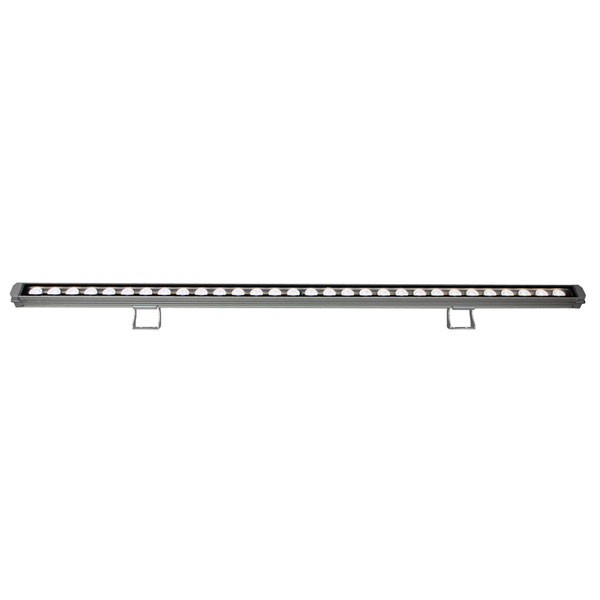

The SLIMBAR W  is an ultra small form factor LED LINEAR BAR with IP67 rating protection.



Description

This kind of LED strip bar series is then suitable for accent lighting.
-WHITE with high efficiency mid-power white LEDs. Available in 2 different measures, 100cm. and 50cm (STUBAR205)



• SOURCE
  n. 30 (0,5W) mid-power NICHIA LEDs  (n. 15 for 50cm.)
Total out lumen: 1800lm (900lm for 50cm.)
Total light power: 12W (6W for 50cm.)
• OPTIC
  20° standard (20mm lenses)
– On request: wide
• TILT
  Manual 160°
• CONTROL
  Constant Voltage 48VDC
• CONNECTIONS
  n.2 connectors 5pin IP 67 (male-female)
possibility to link up to 10 devices in chain
• SETUP AND CONFIGURATION
  To drive SLIMBAR/W use SLIMBAR Pilot
• IP 67 RATING PROTECTION
• POWER SUPPLY
  50VDC (for dimmable version the fixture has to work with SLIMBAR Pilot
• PHYSICAL
  WxDxH: 1000x35x40 mm (dimension of profile)
WxDxH: 500x35x40 mm (dimension of profile)
Weight: 1 Kg. or 0,5 Kg.
