Smart Bat 4 units in bag

Description

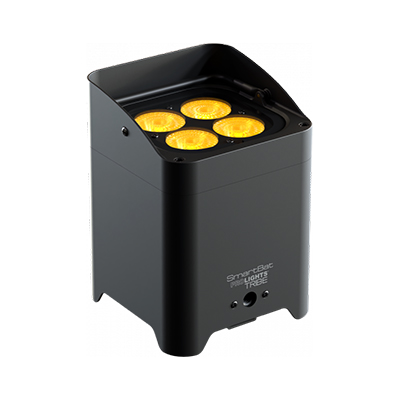

Smart Bat is a wireless light designed to rewrite the rules for battery operated fixtures. Ensuring that high performance and good design all housed in a compact size and price that makes it affordable makes the Smart Bat ideal for every kind of event. It can be remotely controlled through proprietary wireless DMX protocol, the SmartColours app or through the IR controller – making it suitable for every level of user.

Product Features:

Wireless operated: through proprietary wireless DMX protocol or SmartColors app for IOS and Android devices
Long lasting battery life: 12 h in colour changing mode / 8 h in full
Available in black or white
Adjustable foot support for tilt regulation (up to 20°)

LIGHT SOURCE

Source: 4x8W RGBW LEDs
Luminous flux: 1’127lm
Lux: 833lx @3 m full
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 13°
Field angle: 30°
Lens diameter: 42mm / 1.65”
Additional optics: 25° and 45° optional

COLOUR SYSTEM

Colour mixing: RGBW / FC
White presets: 3.200 K ~ 10.000K
Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Tilt angle: ° adjustable foot support for tilt regulation (up to 20°)
Body: sturdy die-cast aluminium body
Body colour: black, white finishing available

CONTROL

Protocols: DMX512
DMX channels: 4 / 6 / 10channel
Wireless Control: integrated, proprietary protocol compatible with WIFIBOX, WDBOX
Display: LED display user interface
Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
IR: infrared sensor controlled by remote
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 – 25 Hz, electronic
Operating temperature: 0° ~ +40°
LED Control: flicker free operation

ELECTRICAL

Mains power supply: 100-240V – 50/60Hz
Max power consumption: 30W
Max power consumption (at 120V): 31W

BATTERY

Battery: 24V lithium
Estimated battery life in colour change mode up to: 12h
Estimated battery life in full-mode up to: 8h
Re-charge connection: power cable
Re-charge time: 5h/max
Battery status: LED battery status indicator

PHYSICAL

IP rating: 33
Cooling: passive cooling and fan-free
Suspension and fixing: M12 threaded insert for easy clamp installation
Signal connection: XLR 3p IN/OUT connectors
Power connection: IEC IN/OUT connectors
Dimensions (WxHxD): 138x184x145mm / 5.43”x7.24”x5.71”
Weight: 3,4kg / 7.5lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

MUSSMA111 Smartbat DATASHEET.pdf    189.72 KB
