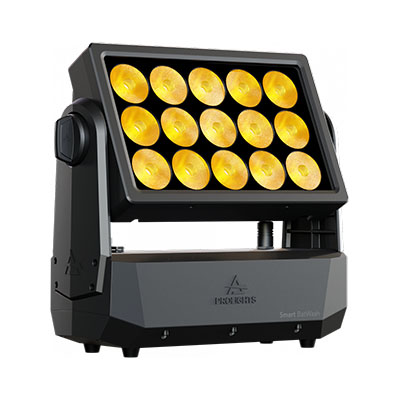

Smart BatWash

Categories: , , , , , , , SKU: MUSSMA121

15x20W LED Wash Light, IP65 rated, with an RGB + Warm White LED source, wirelessly controlled with battery or wired with mains power.

Enquiry about Smart BatWash

Enter the security code shown above

Description

The Smart BatWash is a high-powered LED Wash light that can be operated wirelessly or wired. This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, and it’s Spektra™ calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282-lumen output.  The Smart BatWash is very flexible – it can be used wirelessly with the built-in battery, using CRMX or W-DMX or, alternatively, wired with power and data cables, bypassing the battery and enabling higher brightness levels.  The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a broader coverage whilst keeping a high output. The Smart BatWash has all the software features of the Ecl range, sharing the same user settings and capabilities.

Product Features:

  • High-powered IP65 LED Wash light, wireless (CRMX+W-DMX)/wired control, battery/AC power
  • 15x20W RGB + Warm White LED source, powerful 6,282-lumen output high CRI (>93)
  • Range of holographic filters that modify the shape of the beam angle

LIGHT SOURCE

  • Source: 15x20W RGB + Warm White LED
  • Luminous flux: 6’300 lm @full
  • Lux: 4’451lx @5 m full
  • CRI: > 95 @3200K ; > 93 @5600K
  • R9: > 98 @3200K ; > 93 @5600K
  • TLCI: > 84 @5600K
  • TM30 Rf: 94.2 @3200K ; > 92 @5600K
  • TM30 Rg: 104.4 @3200K ; > 105 @5600K
  • Source life expectancy: > 50.000 h
OPTICS

  • Beam angle: 10°
COLOUR SYSTEM

  • Colour mixing: RGBWW
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2’800K – 10’000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer, colours
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
CONTROL

  • Protocols: CRMX+W-DMX, DMX512, RDM
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 180W
  • Power factor: >0,94
BATTERY

  • Battery: 16,8V lithium
  • Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
  • Re-charge connection: Directly from the mains power or magnetic fast-charge in case
  • Re-charge time: 5h/max
  • Battery status: shown on display
  • Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase
PHYSICAL

  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: IP65 Amphenol XLR 5p IN/OUT connectors
  • Power connection: magnetic DC connector for battery recharge and Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 381x344x143mm / 15”x13.54”x5.63”
  • Weight: 9,8kg / 21.61lbs
CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

  • 1 x SMARTBATWASH
  • 1 x SBWFILTER25
  • 1 x OS25D13
  • 1 x 1,5 meters power cable (BARE END – SEETRONIC POWERCON TRUE1 IP65)
  • User Manual


MUSSMA121 Smartbatwash datasheet.pdf    673.24 KB
MUSSMA121 Smartbatwash manual.pdf    3.44 MB
