Smart Book

Categories: , , , , SKU: MUSSMA112

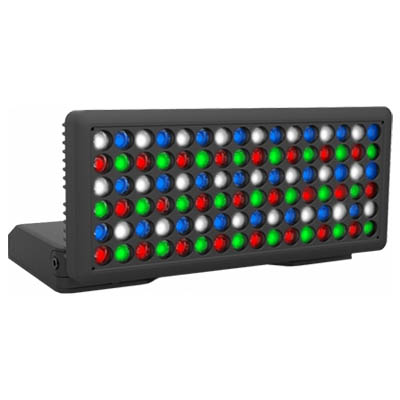

Smart Book is a wireless battery wash light that comes in a pack of 4 in a charging case, performing high output in a super-slim foldable housing.

Description

Smart Book, being IP rated, is an ideal tool for outdoor events to light up landscapes and buildings, all with a magnetic optical system (+50° included) to focus the light. Smart Book comes with a quick magnetic recharge flight case and control through wireless DMX.

Product Features:

  • 96x3W RGBW / FC LED and with included +50° magnetic filter
  • IP rated for outdoor events and with tiltable head
  • Wireless DMX built-in receiver

LIGHT SOURCE

  • Source: 96x3W RGBW LEDs
  • Luminous flux: without filter: 3’019,9 lm – with 50° filter: 2’117 lm – with 60×10° filter: 2’261lm
  • Lux: without filter: 1’593 lx – with 50° filter: 404 lx – with 60×10° filter: 608lx @3 m full
  • Source life expectancy: > 50.000 h

OPTICS

  • Beam angle: without filter: 24° – with 50° filter: 35° – with 60×10° filter: 40×24°
  • Field angle: without filter: 40° – with 50° filter: 70° – with 60×10° filter: 81×45°
  • Additional optics: magnetic 60×10° asymmetric filter (optional)
  • Other: magnetic +50° filter (included)

COLOUR SYSTEM

  • Colour mixing: RGBW
  • Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment

BODY

  • Hardware on-board: foldable head to focus the beam
  • Tilt angle: 0 – 90°
  • Body: sturdy die-cast aluminium body
  • Body colour: black

CONTROL

  • Protocols: W-DMX
  • DMX channels: 4 / 6 / 10channel
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free operation

ELECTRICAL

  • Max power consumption: 424W
  • Max power consumption (at 120V): 426W

BATTERY

  • Battery: 26 A h – 18,5V
  • Estimated battery life in colour change mode up to: 12h
  • Estimated battery life in single colour mode up to: 12h
  • Estimated battery life in full-mode up to: 9h
  • Re-charge connection: magnetic fast-charge in case
  • Re-charge time: 7h/max
  • Battery status: shown on display

PHYSICAL

  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Data connection: W-DMX receiver
  • Power connection: quick lock magnetic fast charge connector
  • Dimensions (WxHxD): 395x213x101mm / 15.55”x8.39”x3.98”
  • Weight: 8,4kg / 18.52lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM


MUSSMA112 DATASHEET.pdf    281.23 KB
MUSSMA112 Smartbook USER MANUAL.pdf    2.47 MB
